Roland TM-6 Pro Trigger Module

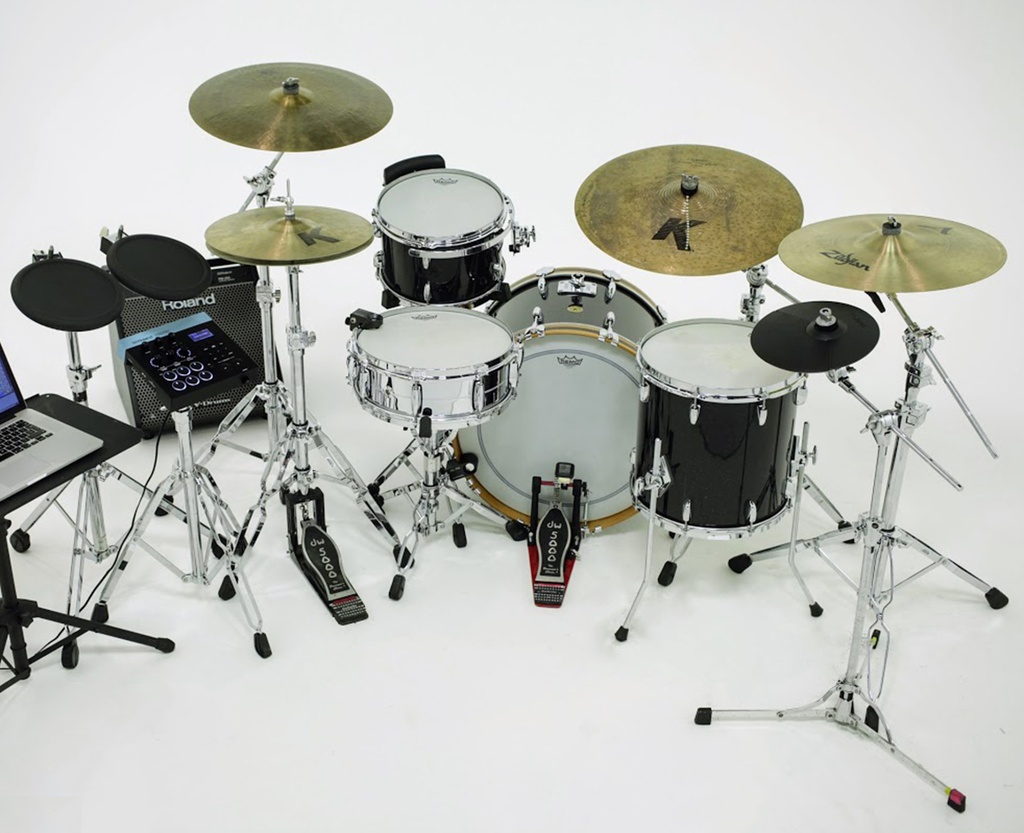

The Roland TM-6 PRO is a professional trigger module designed to bring studio-quality sounds to your acoustic drum kit on stage. With six trigger inputs expandable to twelve, it seamlessly layers electronic tones over your acoustic setup, giving you access to 500 premium sampled sounds captured at world-class studios like Real World and Rockfield, along with 268 expressive V-Drums sounds across 80 ready-to-use kits.

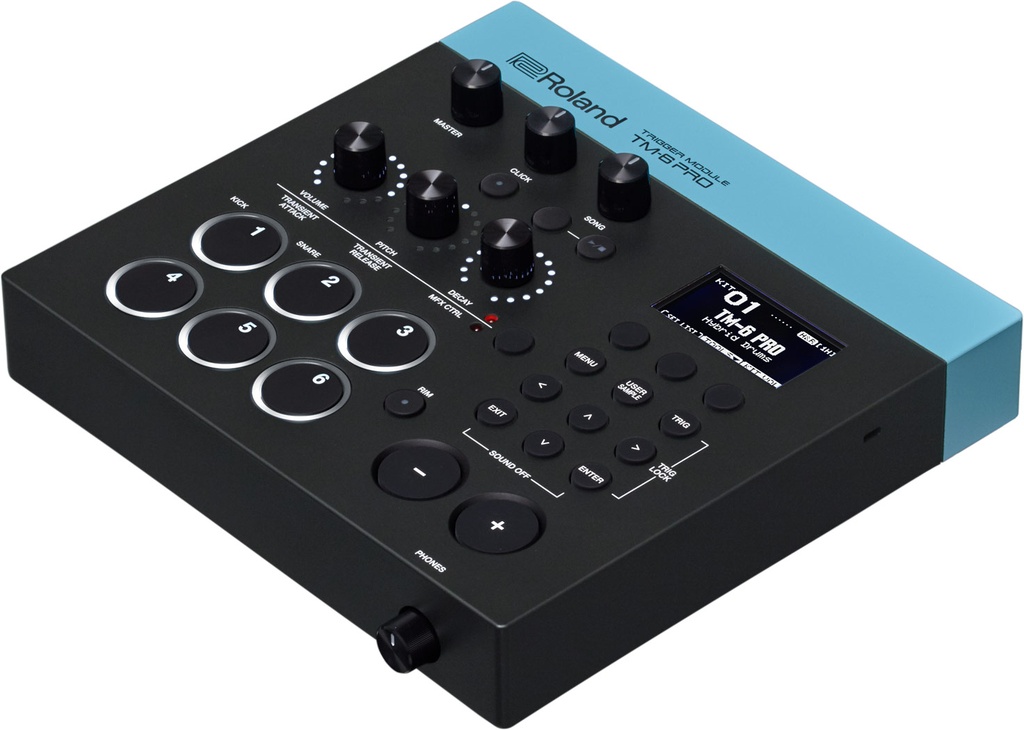

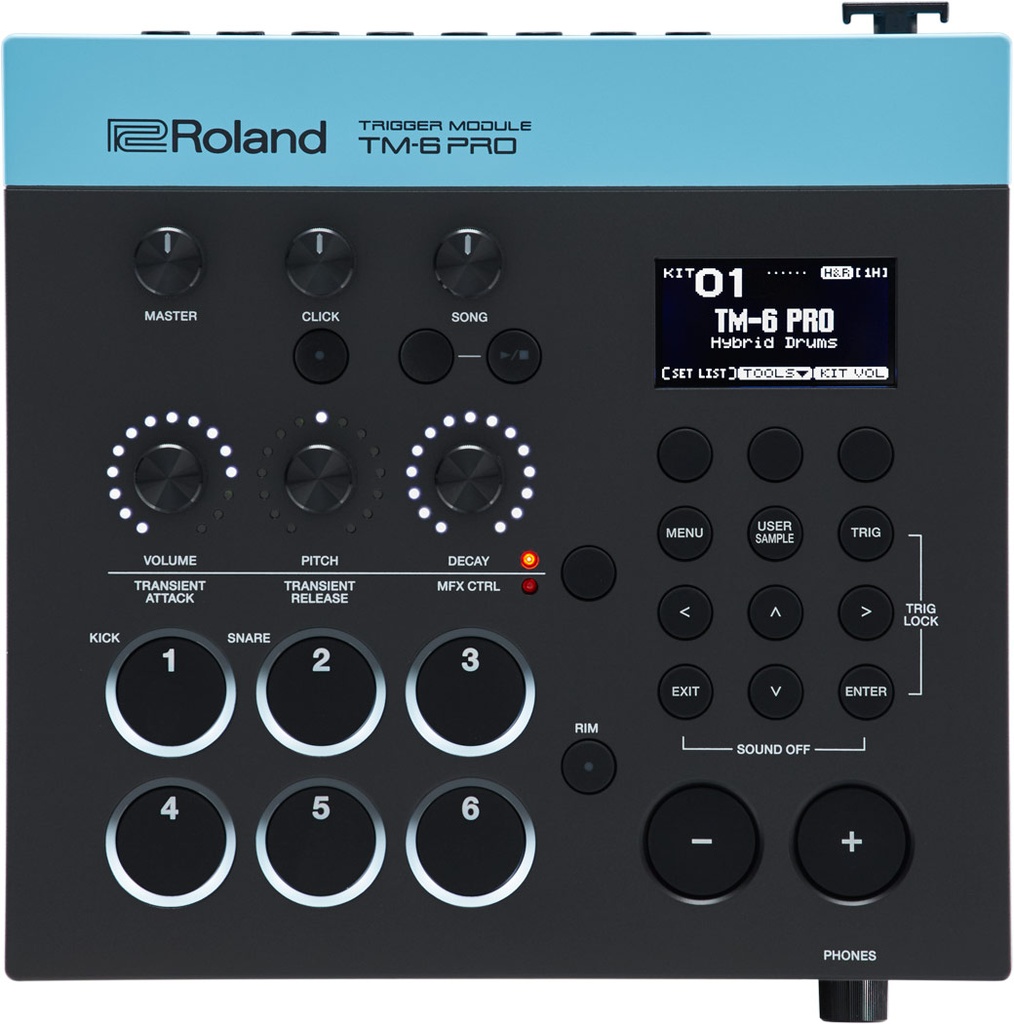

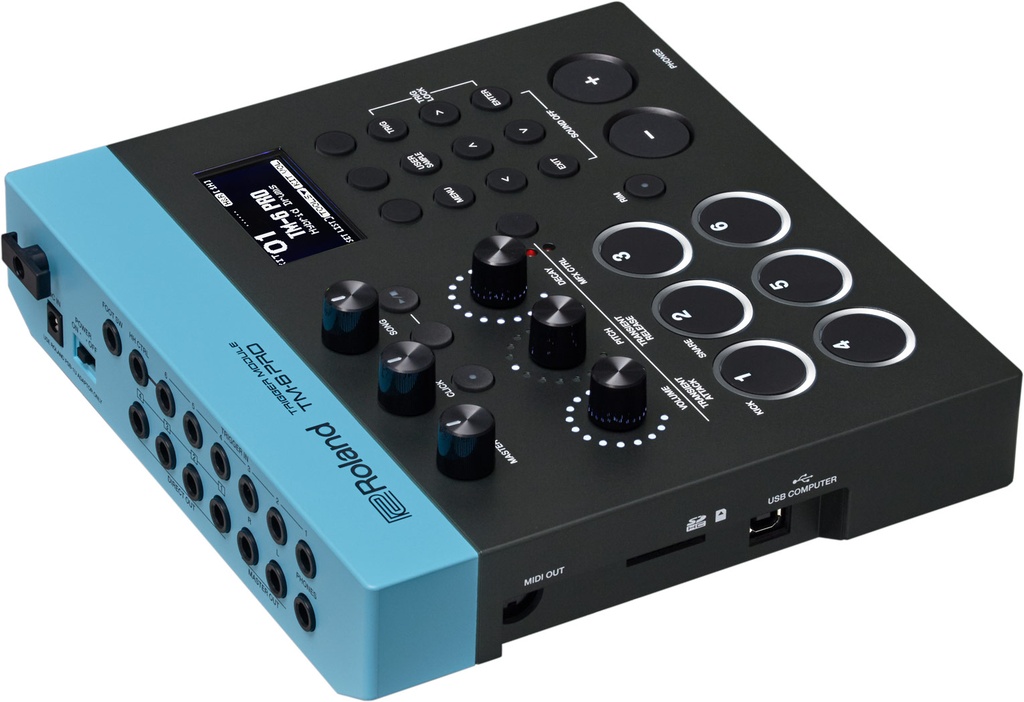

Three dedicated Sound Modify knobs provide hands-on control of volume, pitch, decay, and effects without diving into menus — essential when making adjustments mid-performance. The built-in transient effect lets you reshape the attack and release of any sound for precise tonal shaping. LED trigger indicators offer clear visual feedback so you always know what's firing on stage.

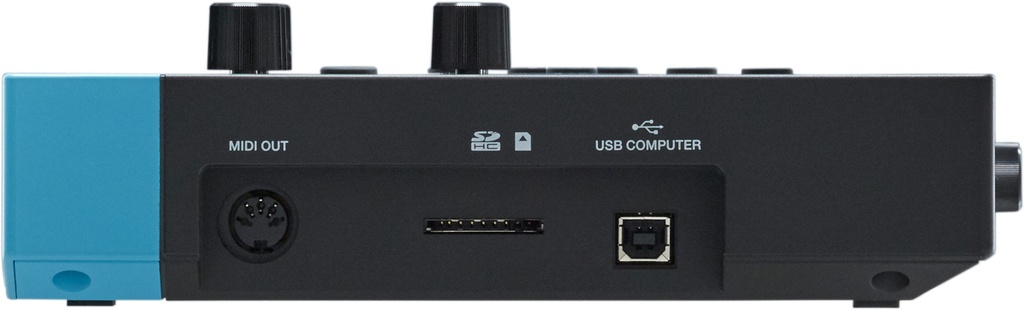

The TM-6 PRO supports custom WAV sample import via SD card, letting you load and trigger the exact sounds from your studio recordings during live shows. Built-in song and click track playback keeps your set tight, while flexible direct outputs give your front-of-house engineer dedicated routing options for each sound source. A USB audio/MIDI interface turns the module into a capable recording tool, connecting directly to your DAW for tracking and production. Whether you're adding a single electronic layer to your snare or building a full hybrid rig, the TM-6 PRO delivers the speed, sound quality, and reliability that working drummers demand.
| Brand: Roland |

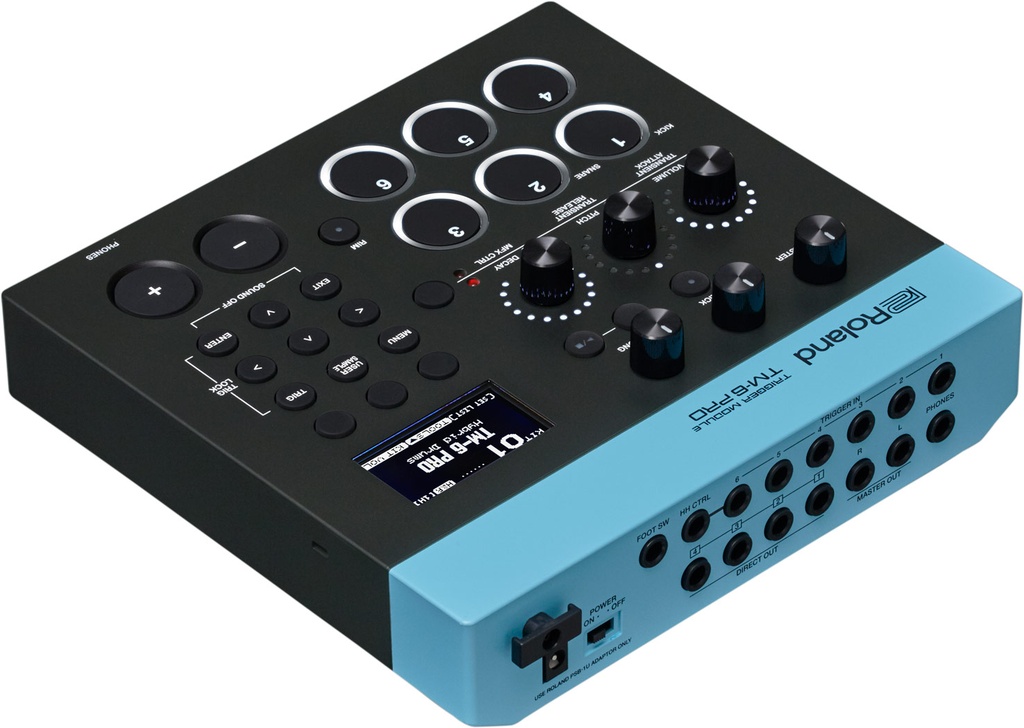

| Connectors: TRIGGER IN jack x 6: 1/4-inch TRS phone type, PHONES jack: Stereo 1/4-inch phone type, MASTER OUT jacks (L, R): 1/4-inch phone type, DIRECT OUT jack x 4: 1/4-inch phone type, HH CTRL jack: 1/4-inch phone type, FOOT SW jack: 1/4-inch TRS phone type, MIDI OUT connector, USB COMPUTER port: USB B type (USB Hi-Speed AUDIO/MIDI), DC IN jack |
| Current Draw: 453 mA |
| Depth: 9-3/16 inches |
| Display: Graphic LCD 128 x 64 dots |
| Effect Type: Pad Equalizer: each pad (HEAD/RIM independently), Pad Transient: each pad (HEAD/RIM collectively), Pad Compressor: each pad (HEAD/RIM collectively), Pad Multi-Effects: 30 types: each pad (HEAD/RIM collectively), Reverb Type: 5 types, Master Compressor, Master Equalizer |
| External Memory: SD card (SDHC supported) |
| Height: 2-5/8 inches |
| Instruments: Preset instruments: 268, Factory preloaded user samples: 500 |
| Misc > Included Accessories: AC adaptor, Quick Start, Leaflet "USING THE UNIT SAFELY", Screw x 4 (*2) |
| Number of Kits: 100 |

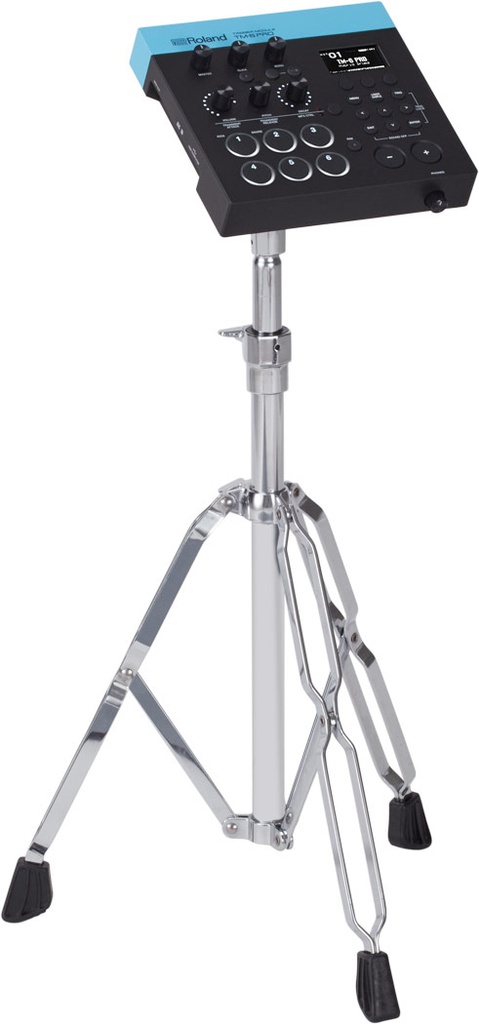

| Options (sold separately): Acoustic drum trigger: RT series, Pads: PD series, PDX series, BT-1, Cymbals: CY series, Kick: KD series, Kick pedal: KT series, Hi-hat: VH-11, Hi-hat control pedal: FD series, Footswitch: BOSS FS-5U, FS-6, Personal drum monitor: PM series, Pad stand: PDS-10, All purpose clamp: APC-33, SD card (sold separately) |
| Power Supply: AC Adaptor (DC 9 V) |
| Weight: 2 lbs 4 oz (excluding AC adaptor) |
| Width: 9 inches |
