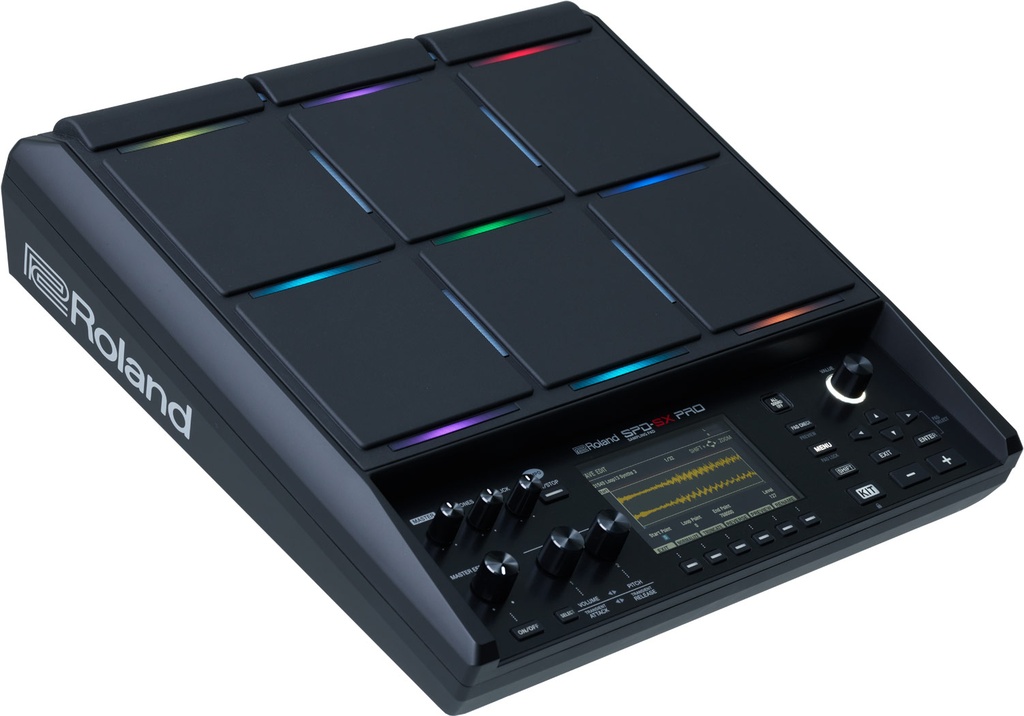

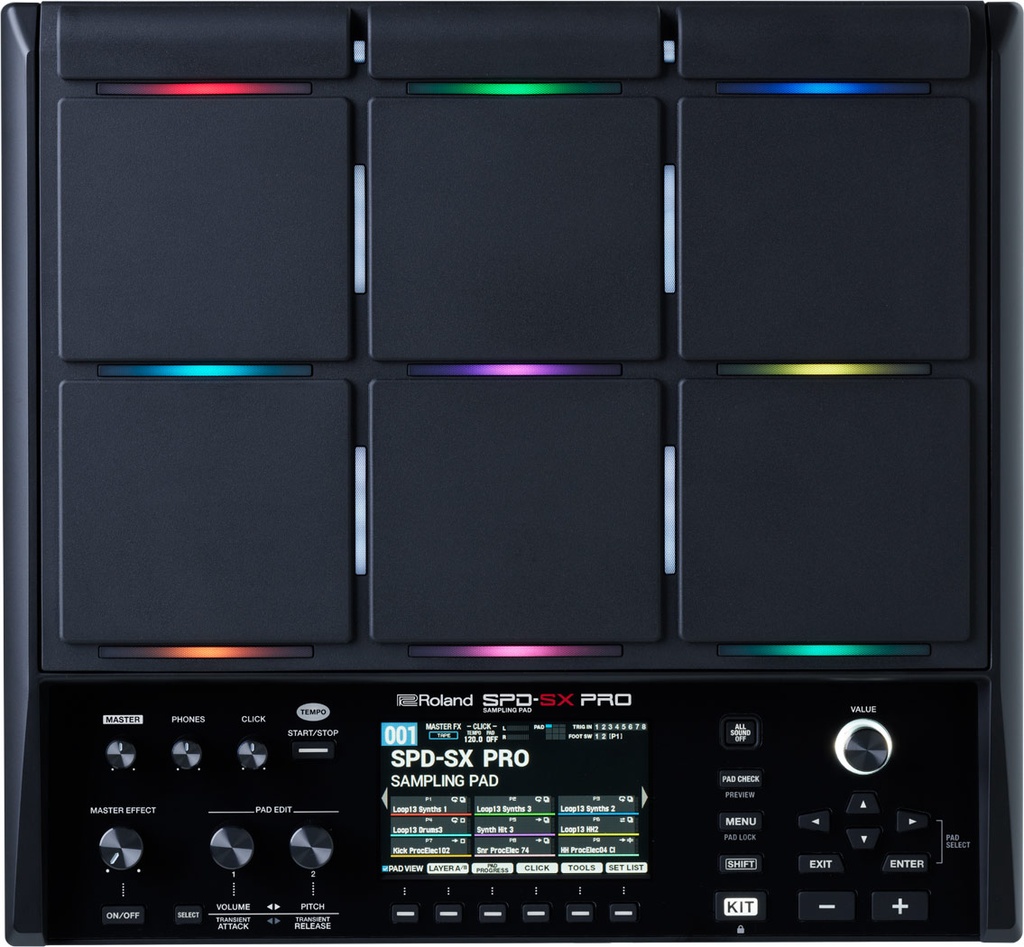

Roland SPD-SX PRO Sampling Pad
The Roland SPD-SX PRO is the flagship sampling pad built for serious live performers and studio musicians who demand professional-grade sample triggering and manipulation. Designed as the evolution of the industry-standard SPD-SX, the PRO model features nine ultra-responsive pads with customizable LED lighting and a 4.3-inch color LCD for intuitive navigation and visual feedback on stage. With 32 GB of onboard storage capable of holding approximately 44 hours of audio, it provides massive capacity for samples, backing tracks, and click patterns. The SPD-SX PRO includes 1,550 onboard samples and 200 pre-configured kits to get you started, while its four simultaneous effects engines and master effects processing let you shape your sound in real time. Time-stretching technology keeps samples locked to your tempo, and the unit supports WAV, AIFF, and MP3 imports with automatic format conversion. The trigger input system accommodates up to 19 total playing surfaces through external pad and footswitch connections, making it equally at home as the centerpiece of an electronic kit or as a powerful addition to a hybrid acoustic setup. A dedicated computer app streamlines kit editing and sample management, keeping your workflow fast and focused.
| Brand: Roland |

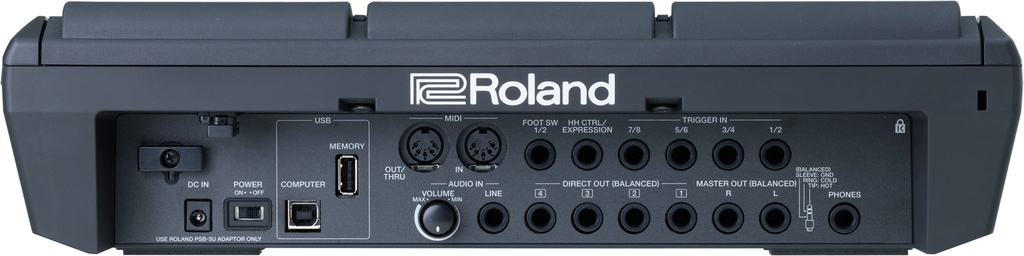

| Connectors: PHONES jack : Stereo 1/4-inch phone type, MASTER OUT (L, R)jacks (BALANCED) : 1/4-inch TRS phone type, DIRECT OUT jack x 4 (BALANCED) : 1/4-inch TRS phone type, AUDIO IN jack : Stereo 1/4-inch phone type (with Volume control), TRIG IN jack x 4 (1/2, 3/4, 5/6, 7/8) : 1/4-inch TRS phone type, FOOT SW jack x 1 (1/2) : 1/4-inch TRS phone type, HH CTRL/EXPRESSION jack x 1 : 1/4-inch TRS phone type, MIDI (IN, OUT/THRU) connectors, USB COMPUTER port : USB B (High-Speed USB, USB-AUDIO, USB-MIDI, App), USB MEMORY port : USB A (High-Speed USB, Backup Save/Load, Sample Import/Export), DC IN jack |
| Current Draw: 1,500 mA |
| Date Format: 16-bit linear |
| Depth: 13-1/16 inches |
| Display: Graphic color LCD 4.3 inch |
| Height: 3-11/16 inches |
| Import Format: WAV, AIFF, MP3 |
| Max Polyphony: 32 voices (included click voices) |
| Misc > Included Accessories: Quick Start, Leaflet "Read Me First", Leaflet "USING THE UNIT SAFELY/IMPORTANT NOTES", AC Adaptor |
| Number of Kits: 200 |

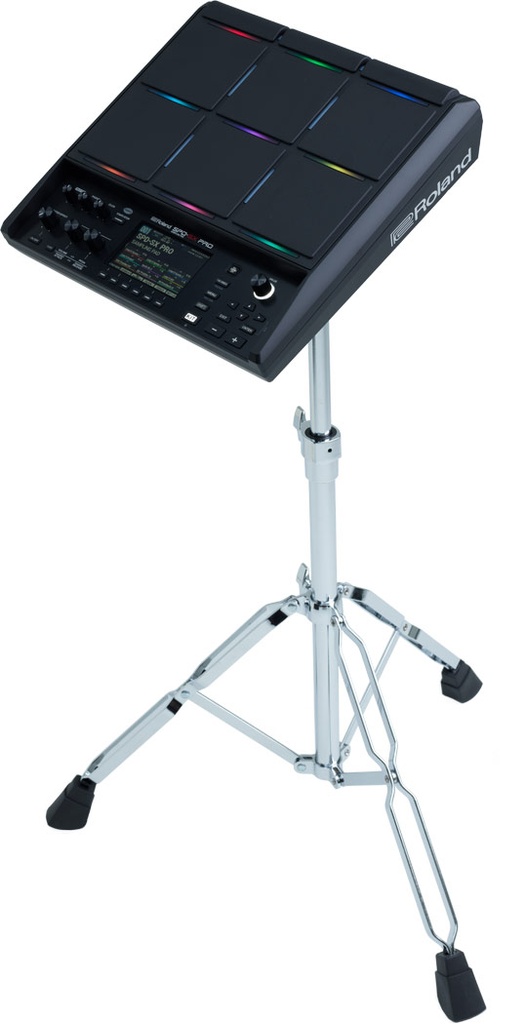

| Options (sold separately): Pads (PD series, PDX series, BT-1), Cymbals (CY series), Hi-Hat (VH-10, VH-11), Kick Triggers (KD series, KT series), Pad Stand (PDS-20, PDS-10), All-Purpose Clamp (APC-33), Acoustic Drum Trigger (RT-30K, RT-30HR, RT-30H), Hi-Hat Pedal(FD-8, FD-9, VH-10, HV-11), Expression Pedal(BOSS EV-30), Pedal Switch(DP-2), Foot Switch (BOSS FS-5U, FS-6, FS-7), Y cable (PCS-31L), USB Flash Memory (sold separately) |
| Power Supply: DC 12V (AC Adaptor) |
| Preload Wave: Factory preloaded samples: 1,550 or more |
| Sampling Rate: 48 kHz |
| Setlist: 32 (32 steps per SET LIST) |
| Weight: 6 lbs 10 oz, (excluding AC Adaptor) |
| Width: 14-3/16 inches |
