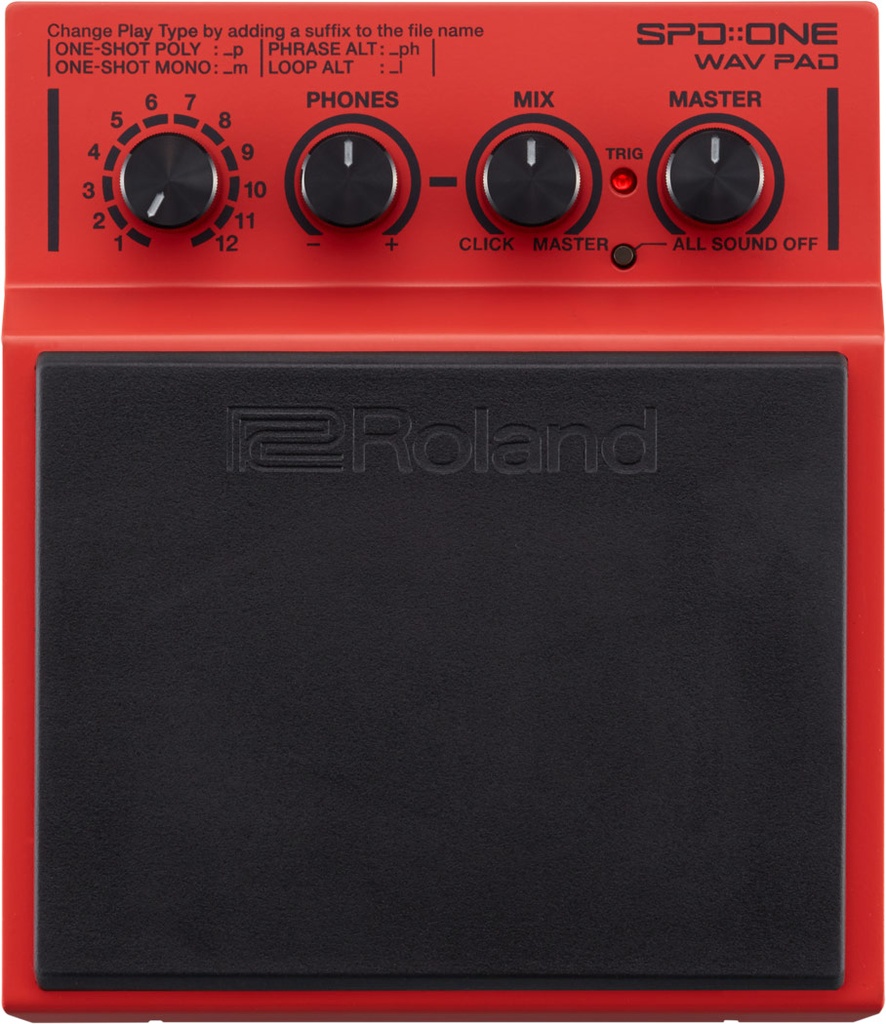

Roland SPD::ONE WAV PAD Digital Percussion Pad
The Roland SPD::ONE WAV PAD is a compact digital percussion pad that lets you perform with your own custom WAV samples in any live or studio setting. Simply connect to a computer via USB, drag and drop your audio files onto the 4GB internal drive, and you're ready to play. Strike the pad with sticks, hands, or feet to trigger up to three layered sounds simultaneously, with velocity-sensitive response that lets you control dynamics naturally. A standout feature is the ability to route backing tracks through the main output while sending a click track exclusively to the headphones, keeping your band in sync without the audience hearing the metronome. Four intuitive knobs give you quick control over sound selection, volume, and mix — no complex menus to navigate. The SPD::ONE WAV PAD also doubles as a USB-MIDI controller for triggering sounds in your DAW. Powered by four AA batteries or an AC adapter, it mounts easily on a stand or sits on any flat surface, making it an ideal addition to any performer's setup regardless of instrument or genre.
| Electronics > Controls: WAVE knob, [PHONES] knob, [MIX] knob, [MASTER] knob, [ALL SOUND OFF] button, [THRES] knob, [SENS] knob, [POWER] switch |
| Electronics > USB Computer: Mass Storage Class, MIDI |
| Brand: Roland |
| Connectors: MASTER OUT (STEREO) jack: Stereo 1/4-inch phone type, PHONES jack: Stereo 1/4-inch phone type, USB port: Micro-B type, DC IN jack |
| Current Draw: 300 mA (DC IN), *Expected battery life under continuous use, Rechargeable Ni-MH battery (AA, HR6):, Normal use: Approx. 7hours, Maximum load use: Approx. 4hours, Alkaline battery (AA, LR6):, Normal use: Approx. 6hours, Maximum load use: Approx. 3hours, *These can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use. |
| Date Format: WAV (44.1 kHz, 16 bits, Stereo/Mono) |
| Depth: 6-5/16 inches |
| Effect Patches / Memory: 4 GB (approx. 360 min. in stereo) |
| Height: 2-1/4 inches |
| Indicator: TRIG Indicator |

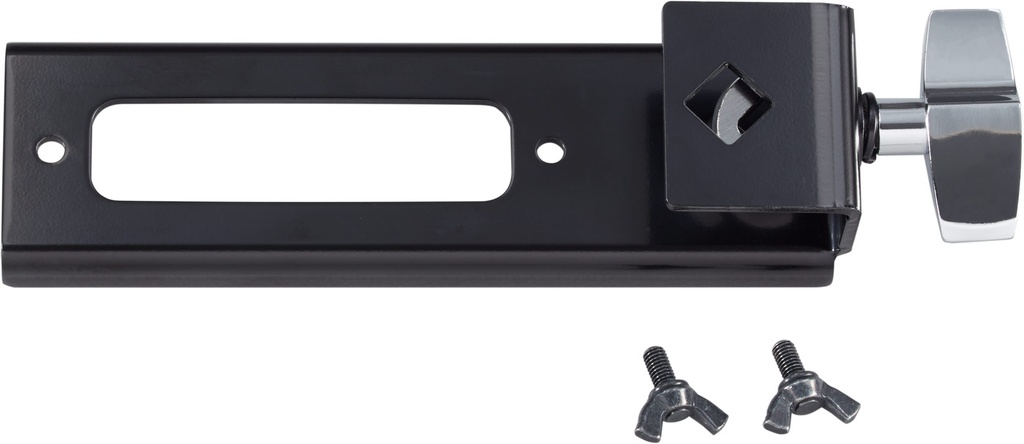

| Misc > Included Accessories: Owner's manual, Leaflet "USING THE UNIT SAFELY", Attachment, Attachment screws x 2, Holder mounting screws (bolt x 1, nut x 1, washers x 2)*, *Acceptable rod diameters: 8.0–(3/8–1/2 inch), Alkaline batteries (AA, LR6) x 4 |
| Options (sold separately): AC adaptor: PSA-S series, Stereo Split Cable: PCS-31L, Personal drum monitor: PM-10, Headphones: RH-300V (sold separately) |
| Power Supply: Rechargeable Ni-MH battery (AA, HR6) x 4, Alkaline battery (AA, LR6) x 4, AC adaptor (DC9V) |
| Weight: 900 g, 2 lbs |
| Width: 5-9/16 inches |
