Boss RC-600 Loop Station
Meet the RC-600, the most advanced looper on the planet. Loaded with evolved features and customizable functions, this next-generation Loop Station ushers in a new era of creative power for guitarists, singer/songwriters, multi-instrumentalists, and other looping musicians. Capture multiple mics and instruments with six stereo tracks and premium 32-bit sound, and take full command with nine freely assignable footswitches and deep external control support. And that’s just the start—you can also color loops with a massive FX selection, groove with onboard rhythms, route audio as you like to the three stereo outputs, integrate with computer software via USB, and much more.
| AD Conversion: 32 bits |
| Brand: Boss |

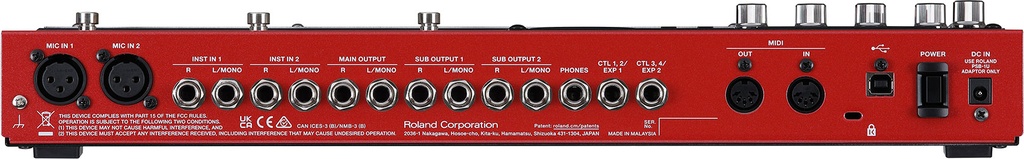

| Connectors: MIC IN 1, 2 connectors: XLR type (balanced, phantom power: DC 48 V, 10 mA Max, INST IN 1, 2 jacks, MAIN OUTPUT jacks, SUB OUTPUT 1, 2 jacks: 1/4-inch phone type, PHONES jack: Stereo 1/4-inch phone type, CTL1,2/EXP1 jack, CTL3,4/EXP2 jack: 1/4-inch TRS phone type, USB port: USB B type, MIDI (IN, OUT) connectors, DC IN jack |
| Controls: REC/PLAY switch x 3, STOP switch x 3, TRACK SELECT switch, UNDO/REDO switch, ALL START/STOP switch, MENU button, LOOP button, RHYTHM button, TAP TEMPO button, ENTER button, EXIT button, PAGE buttons, 1--4 knobs, OUTPUT LEVEL knob |
| Current Draw: 1.2 A (with phantom power), 1.1 A (without phantom power) |
| Depth: 6-7/16 inches |
| Display: Graphic LCD (128 x 64 dots, backlit LCD) |
| Effect Patches / Memory: 99 |
| Effect Type: 32-bit floating point |
| Height: 2-5/8 inches |
| Included Accessories: AC adaptor, Owner's Manual, Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information") |
| Input Impedance: MIC IN 1, 2: 3kohms, INST IN 1, 2: 1 M ohms/25 k ohms (selectable) |
| Maximum Input Level: MIC IN 1, 2: 0 dBu, INST IN 1, 2: +7 dBu/+20 dBu (selectable) |
| Maximum Output Level: MAIN OUTPUT: +7 dBu, SUB OUTPUT 1, 2: +7 dBu |
| Nominal Input Level: MIC IN 1, 2: -40 dBu, INST IN 1, 2: -10 dBu |
| Nominal Output Level: MAIN OUTPUT: -10 dBu, SUB OUTPUT 1, 2: -10 dBu |
| Options (sold separately): Footswitch: FS-5U, Dual Footswitch: FS-6, FS-7, Expression Pedal: FV-500H, FV-500L, EV-30, Roland EV-5 (sold separately) |
| Output Impedance: MAIN OUTPUT: 1 k ohm, SUB OUTPUT 1, 2: 1 k ohm |
| Power Supply: AC adaptor |
| Recommended Load Impedance: MAIN OUTPUT: 10 k ohms or greater, SUB OUTPUT 1, 2: 10 k ohms or greater |
| Sampling Rate: 44.1 kHz |
| Weight: 5 lbs 5 oz (including battery) |
| Width: 17-1/8 inches |
