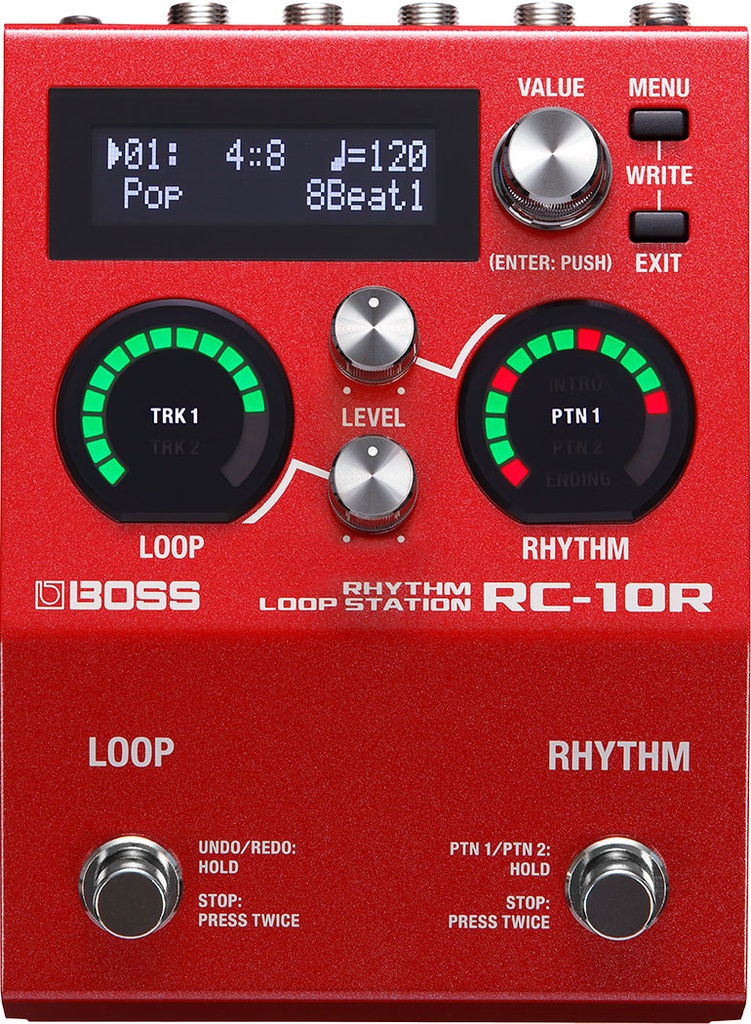

Boss RC-10R Pedal Looper with Rhythm
The BOSS RC-10R Rhythm Loop Station combines a powerful stereo looper with a built-in drum machine, giving musicians a complete rhythmic backing and loop creation tool in a single compact pedal. With over 280 onboard rhythm patterns spanning a wide range of genres — each with intro, ending, and fill variations — the RC-10R delivers dynamic, realistic drum accompaniment that responds naturally to your performance. The stereo looper engine offers up to 6 hours of recording across 99 phrase memories, with a two-track serial design that lets you build verse and chorus sections independently, all locked in sync with the rhythm track. Dual circular LED indicators provide intuitive visual feedback for both loop and rhythm status, making it easy to stay oriented during live performance. The RC-10R also supports importing custom WAV loops and SMF rhythms via USB, and MIDI connectivity opens the door to integration with external gear and controllers. Whether you're a solo performer looking for a full-band feel on stage, a songwriter sketching out ideas, or a guitarist who wants to practice with quality rhythm accompaniment, the RC-10R delivers studio-grade 32-bit audio quality in a pedalboard-friendly format.
| AD Conversion: 32 bits |
| Brand: Boss |
| Bypass: Buffered bypass (Common) |

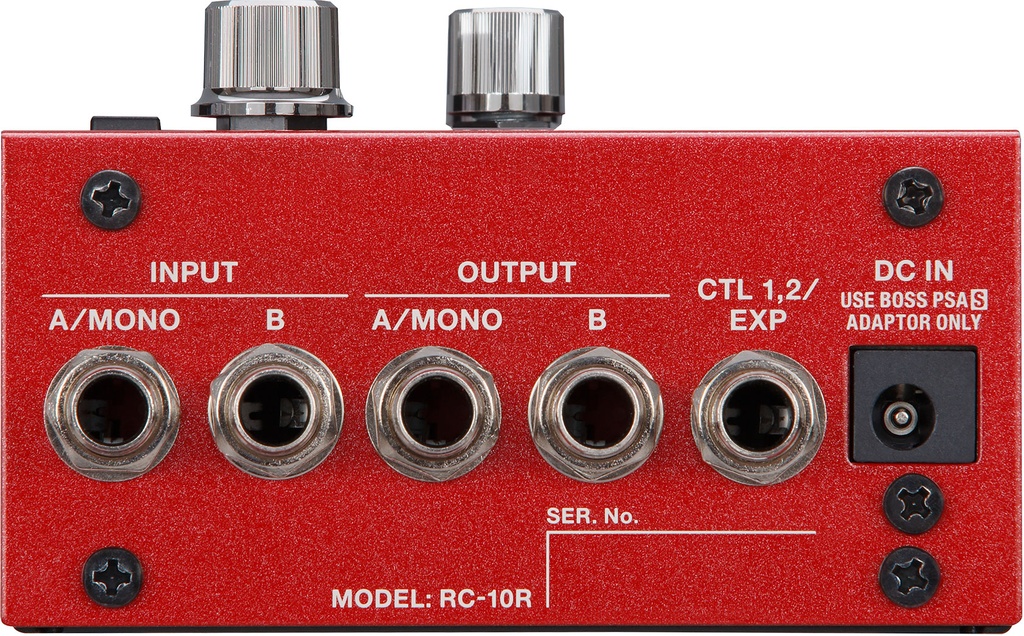

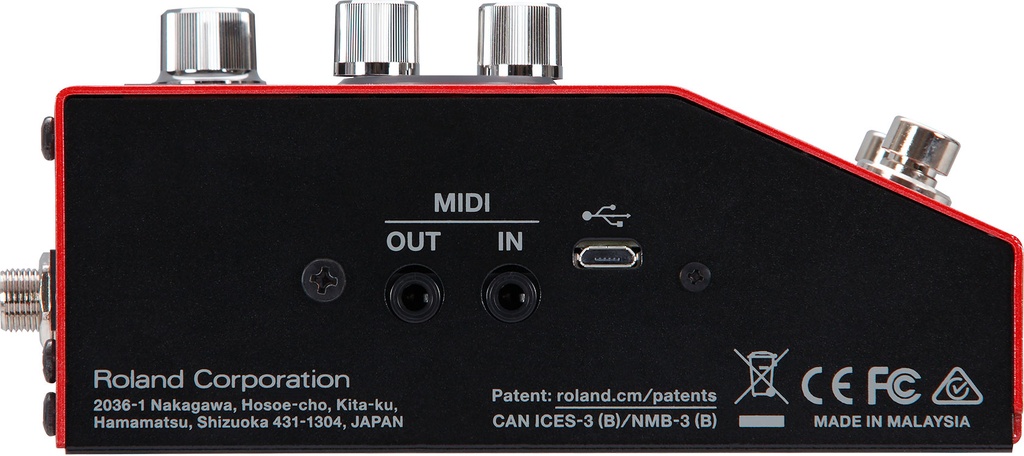

| Connectors: INPUT (A/MONO, B) jacks, OUTPUT (A/MONO, B) jacks: 1/4-inch phone type, CTL 1, 2/EXP jack: 1/4-inch TRS phone type, MIDI (IN, OUT) jacks: stereo miniature type, DC IN jack, USB COMPUTER port: USB micro B type (Common) |
| Controls: RHYTHM switch, LOOP switch, VALUE knob, RHYTHM LEVEL knob, LOOP LEVEL knob, MENU button, EXIT button (Common) |
| Current Draw: 250 mA (Common) |
| Depth: 5-7/16 inches |
| Display: 16 characters x 2 lines LCD (with backlit) (Common) |
| Effect Patches / Memory: 99 (Common) |
| Effect Type: 32-bit floating point |
| Height: 2-1/2 inches (excluding rubber foot), 2-9/16 inches (including rubber foot) |
| Included Accessories: Owner's Manual, Leaflet "USING THE UNIT SAFELY", AC adaptor, Rubber foot x 4 (Common) |
| Indicator: RHYTHM indicator, LOOP indicator (Common) |
| Input Impedance: INPUT A/MONO, B: 1 M ohm (Common) |
| Max Polyphony: 24 voices (Rhythm) |
| Maximum Input Level: INPUT A/MONO, B: +8 dBu (Common) |
| Maximum Output Level: OUTPUT A/MONO, B: +8 dBu (Common) |
| Nominal Input Level: INPUT A/MONO, B: -10 dBu (Common) |
| Nominal Output Level: OUTPUT A/MONO, B: -10 dBu (Common) |
| Options (sold separately): Footswitch: FS-5U, Dual footswitch: FS-6, FS-7, Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5, TRS/MIDI connecting cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535 (Common) (sold separately) |
| Output Impedance: OUTPUT A/MONO, B: 1 k ohms (Common) |
| Power Supply: AC adaptor (Common) |
| Recommended Load Impedance: OUTPUT A/MONO, B: 10 k ohms or greater (Common) |
| Sampling Rate: 44.1 kHz |
| Weight: 620 g, 1 lbs 6 oz (excluding AC adaptor) |
| Width: 4 inches |
