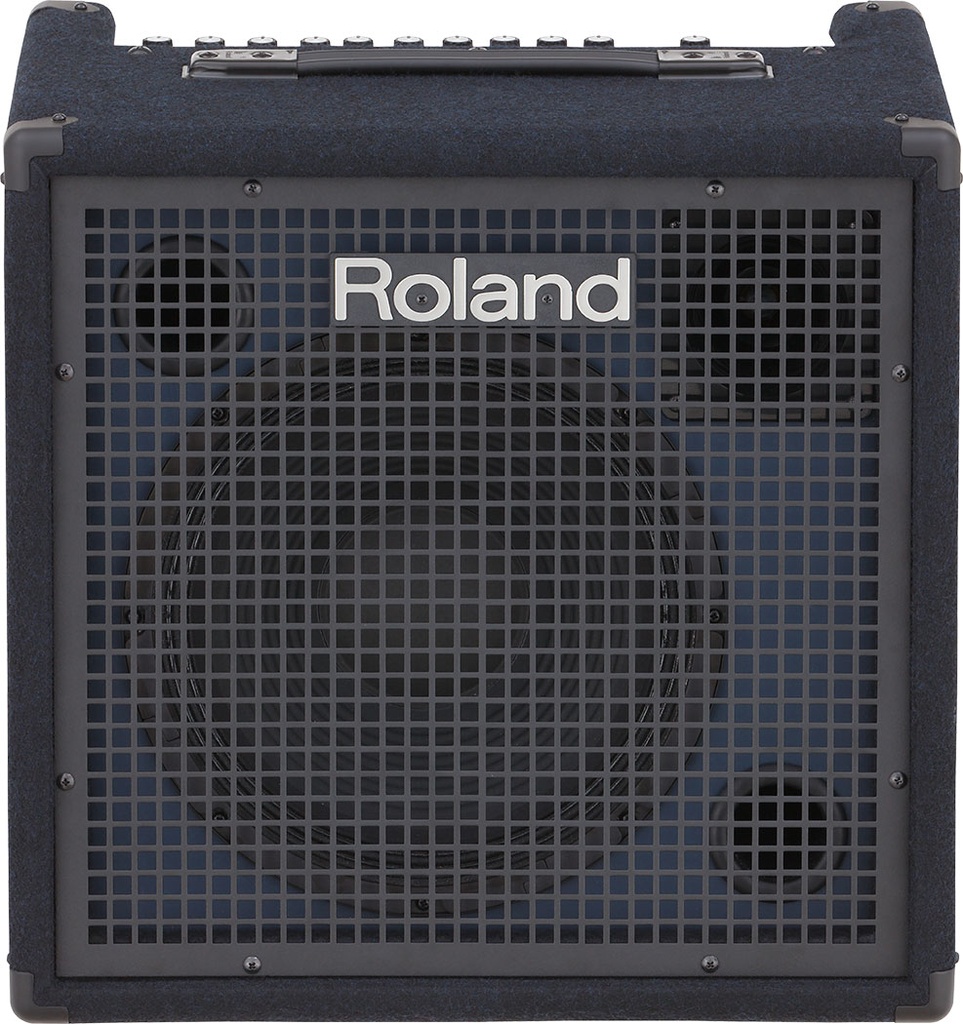

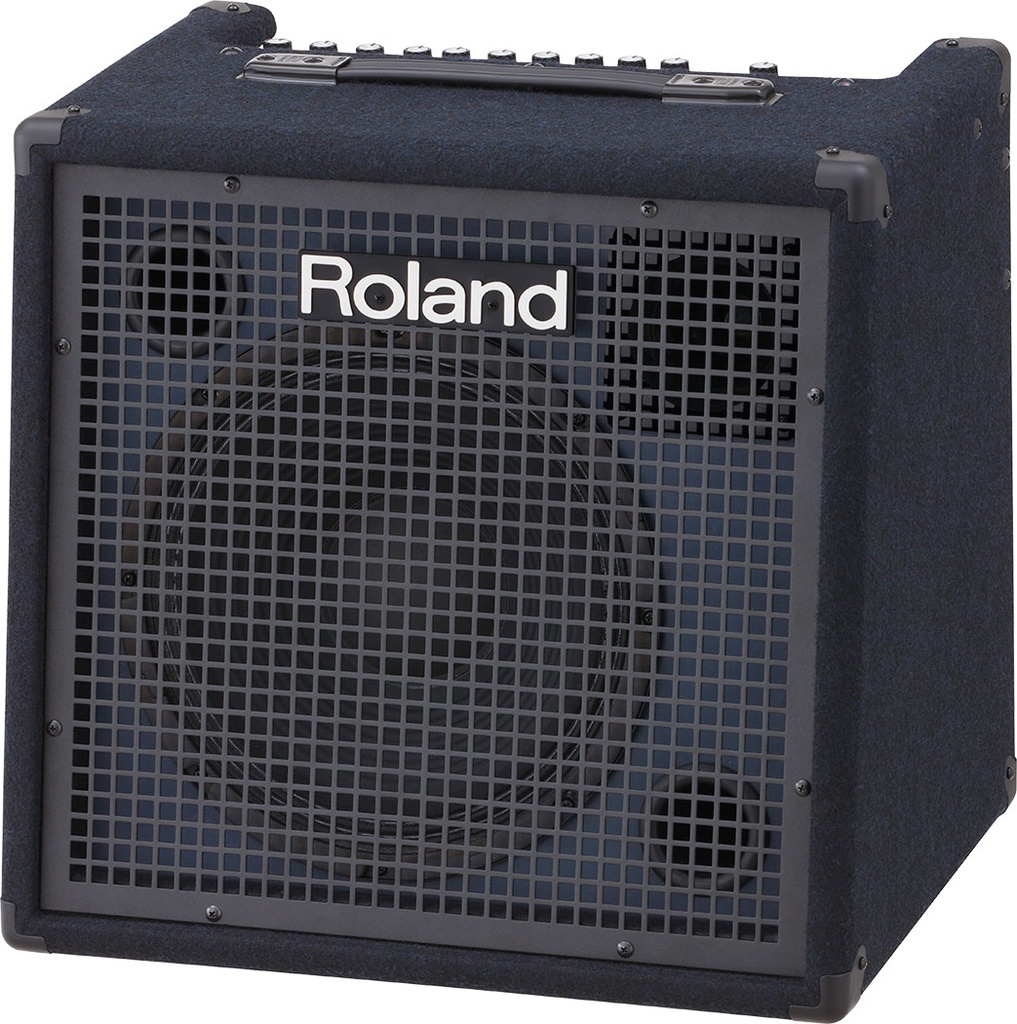

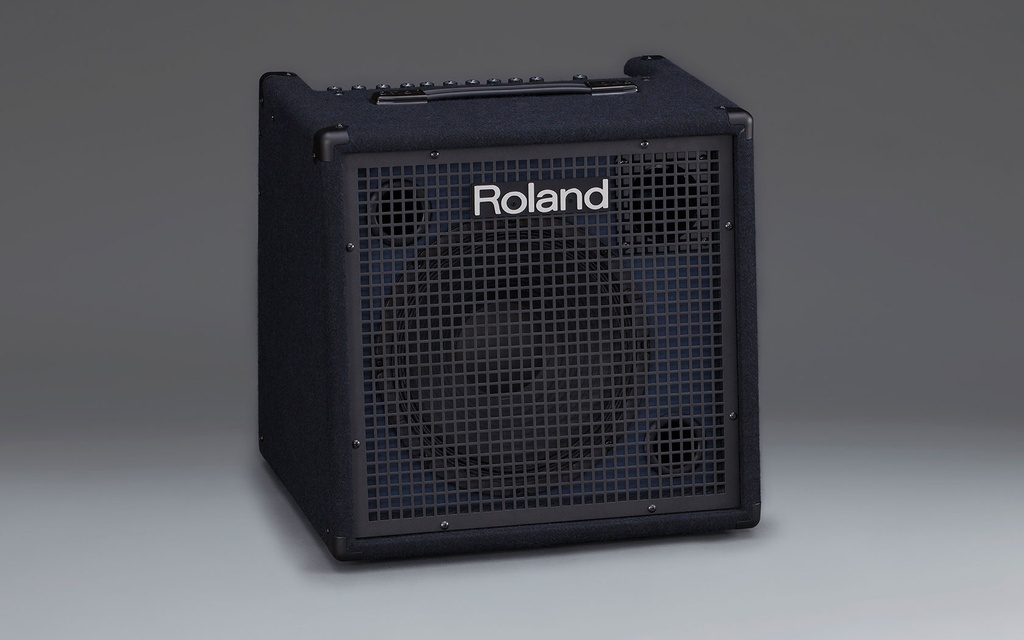

Roland KC-400 Stereo Keyboard Amplifier
The Roland KC-400 is a 150-watt stereo mixing keyboard amplifier built to faithfully reproduce the full frequency range of electronic instruments on stage and in rehearsal. Powered by a redesigned amp section driving a custom 12-inch woofer and horn tweeter in a twin bass-reflex cabinet, the KC-400 delivers clear, detailed sound whether you're playing an 88-note stage piano, a synthesizer, an organ, or electronic percussion. A built-in four-channel stereo mixer with an XLR mic input on Channel 1 lets you blend multiple instruments and vocals through a single amplifier, while the Output Select function on Channel 4 provides a convenient way to monitor click tracks without sending them to the main speakers. Master EQ with a Shape switch offers quick tonal adjustments to suit any room, and the Stereo Link feature lets you daisy-chain a second KC-400 for true stereo coverage on larger stages. Line outputs, a headphone jack, and a dedicated subwoofer output round out the connectivity, making the KC-400 a versatile all-in-one amplification and monitoring solution for performing keyboardists.

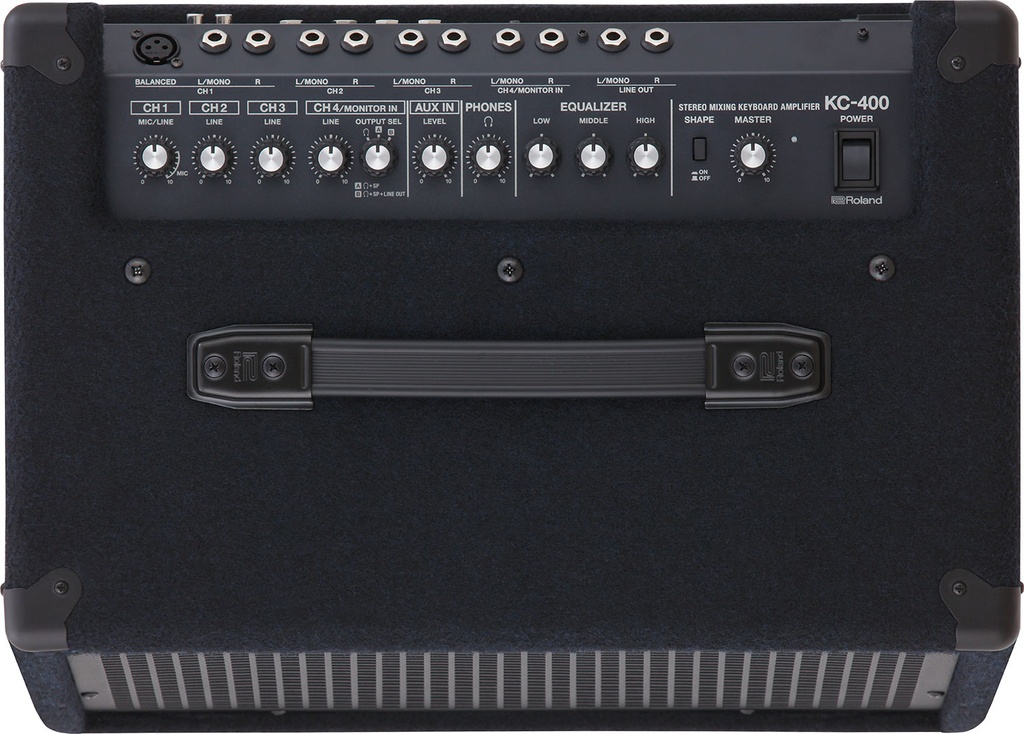

| Electronics > Controls: SHAPE button, POWER switch, [CH1], MIC/LINE knob, [CH2], LINE knob, [CH3], LINE knob, [CH4], LINE knob, OUTPUT SEL knob, [PHONES], VOLUME knob, [EQUALIZER], LOW knob, MIDDLE knob, HIGH knob, MASTER knob |
| Brand: Roland |

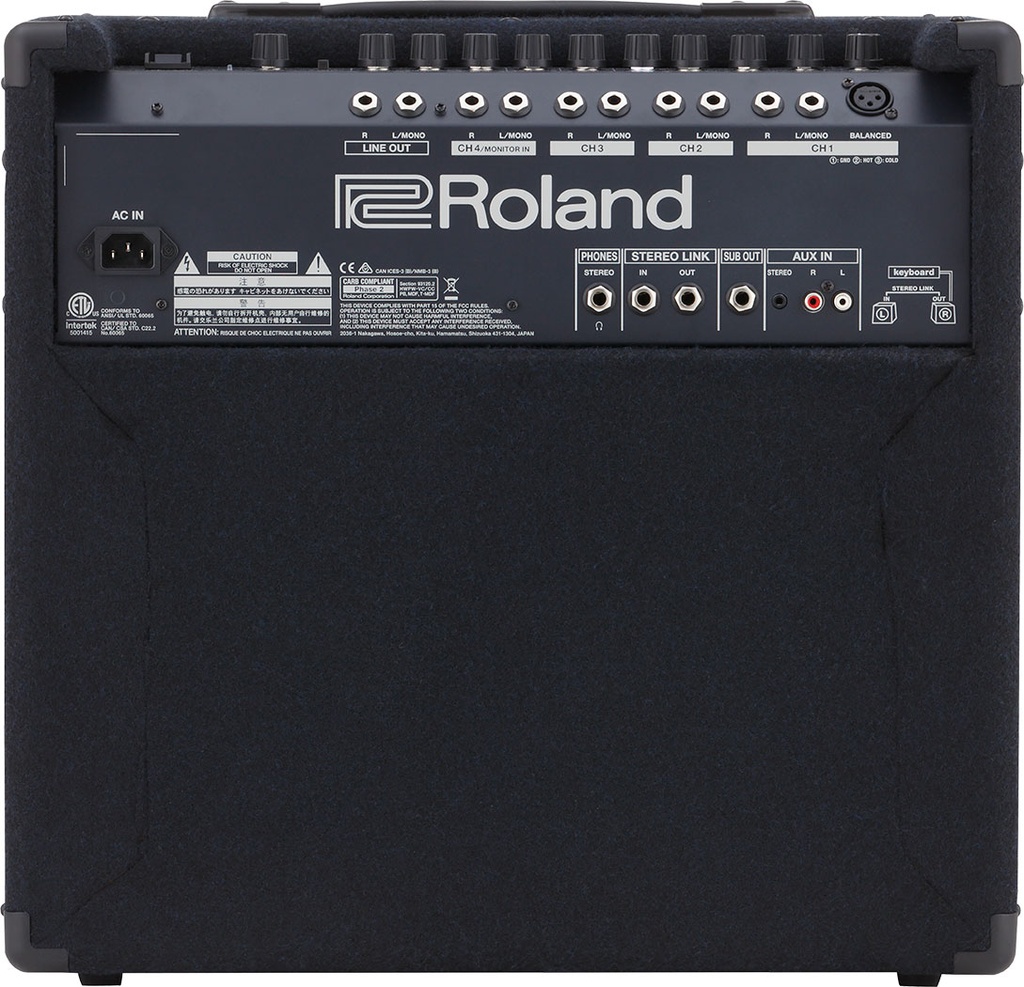

| Connectors: CH1 (BALANCED) jack: XLR type, CH1 (L/MONO, R) jacks: 1/4-inch phone type, CH2 (L/MONO, R) jacks: 1/4-inch phone type, CH3 (L/MONO, R) jacks: 1/4-inch phone type, CH4/MONITOR IN (L/MONO, R) jacks: 1/4-inch phone type, LINE OUT (L/MONO, R) jacks: 1/4-inch phone type, AUX IN (L, R) jacks: RCA phono type, AUX IN (STEREO) jacks: Stereo miniature phone type, SUB OUT jack: 1/4-inch phone type, STEREO LINK (IN, OUT) jacks: 1/4-inch phone type, PHONES jack: Stereo 1/4-inch TRS phone type (mono signal output) |
| Depth: 15-3/16 inches |
| Height: 18-9/16 inches |
| Indicator: Power |
| Misc > Included Accessories: Owner's Manual |
| Nominal Input Level: CH1 (BALANCED, L/MONO, R): -50-- -20 dBu, CH2 (L/MONO, R): -20 dBu, CH3 (L/MONO, R): -20 dBu, CH4/MONITOR IN (L/MONO, R): -20 dBu, AUX IN (L, R, STEREO): -10 dBu, STEREO LINK (IN): 0 dBu (1 kHz) |
| Nominal Output Level: LINE OUT (L/MONO, R): +4 dBu, STEREO LINK (OUT): 0 dBu, SUB OUT: +4 dBu (1 kHz) |
| Power Consumption: 40 W |
| Signal Rated Power Output: 150 W |
| Speakers: 30 cm (12 inches) Woofer x 1, Horn Tweeter x 1 |
| Weight: 48 lbs 9 oz |
| Width: 19-5/16 inches |
