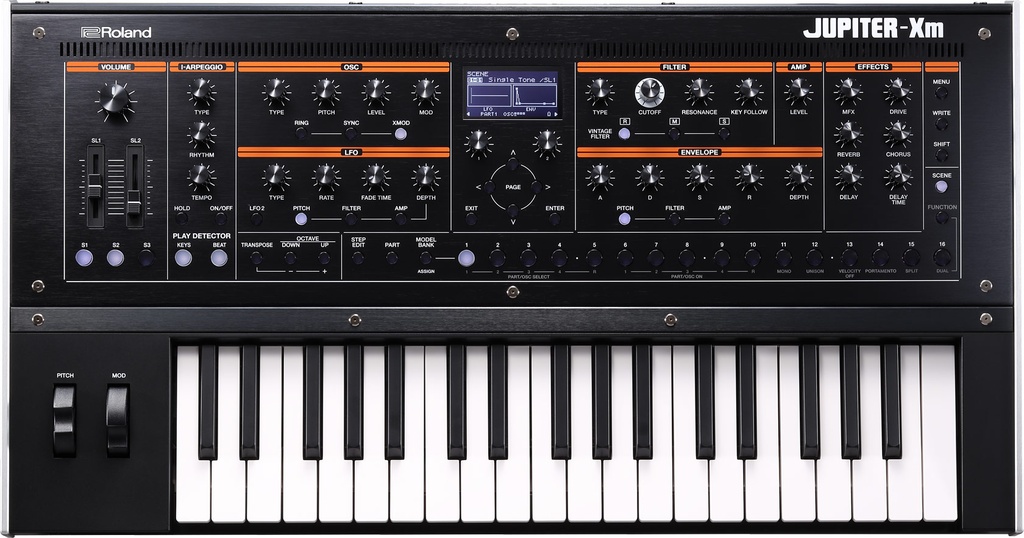

The Roland JUPITER-Xm is a portable powerhouse synthesizer that distills decades of iconic Roland sound design into a compact, go-anywhere format. Built on Roland's ZEN-Core Synthesis System, it faithfully recreates legendary instruments including the JUPITER-8, JUNO-106, SH-101, and classic TR drum machines, while offering a vast modern sound palette of over 4,000 tones across four synth parts and a dedicated rhythm part.
What sets the JUPITER-Xm apart is its self-contained design. Built-in stereo speakers, battery operation, and Bluetooth audio and MIDI connectivity make it a fully independent music production and performance instrument that fits under one arm. Despite its compact 37-key footprint, it delivers professional-grade audio through balanced XLR outputs alongside standard connections, making it equally at home on stage or in the studio.
The I-Arpeggio feature uses intelligent algorithms to generate dynamic, evolving patterns that respond to your playing in real time, turning the JUPITER-Xm into a genuine creative collaborator. A comprehensive multi-effects engine with over 90 effect types, a built-in microphone input for vocoding and vocal processing, and deep sound design capabilities round out an instrument that punches far above its size. The platform continues to grow through downloadable Model Expansions, adding entirely new instrument engines like the JD-800 and Vocal Designer to an already expansive sonic toolkit.
Ver 4.2, Profile Support: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy), Codec: SBC (Support to the content protection of the SCMS-T method)

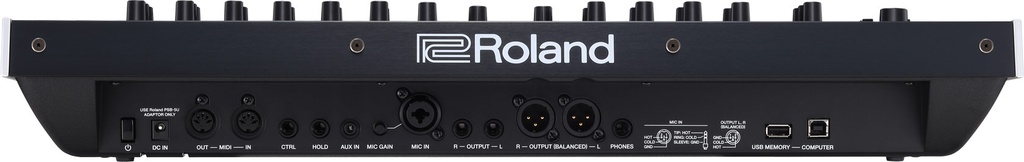

Connectors
HEADPHONES jacks: Stereo miniature phone type (front), Stereo 1/4-inch phone type (rear), MAIN OUT jacks (L/MONO, R): 1/4-inch phone type, MAIN OUT jacks (L, R): XLR type, MIC INPUT jack: 1/4 inch phone type/XLR type, AUX INPUT jack: Stereo miniature phone type, HOLD PEDAL jack, CONTROL PEDAL jack, MIDI connectors (IN, OUT), USB COMPUTER port (AUDIO/MIDI), USB MEMORY port, DC IN jack
Current Draw
1,500 mA
Depth
12-1/8 inches
Display
Graphic LCD 128 x 64 dots
External Memory
USB Flash drive (sold separately)
Height
3-11/16 inches
Options (sold separately)
Pedal Switch: DP series, Expression Pedal: EV-5, USB Flash drive (*), * Use a commercially available USB flash drive. However, we cannot guarantee that all commercially available USB flash drives will work. (sold separately)
Power Supply
DC 12 V: AC adaptor or rechargeable Ni-MH battery (AA, HR6) (sold separately) x 8
Sound Generator Number of Tones
Preset tone: 4,000 or greater, User tone: 512, Drum Kit: 90 or greater
Speakers
Full range (3.5 x 8 cm) x 2, Tweeter 2 cm x 2
Type
Synthesizer
Weight
9 lbs 12 oz (excluding AC adaptor, Batteries)
Width
22-11/16 inches
Controls
Pitch Bend Wheel, Modulation Wheel, Assignable Slider x 2, Assignable Switch x 3
Included Accessories
Owner's manual, Leaflet "USING THE UNIT SAFELY", AC adaptor (PSB-5U), Power cord
