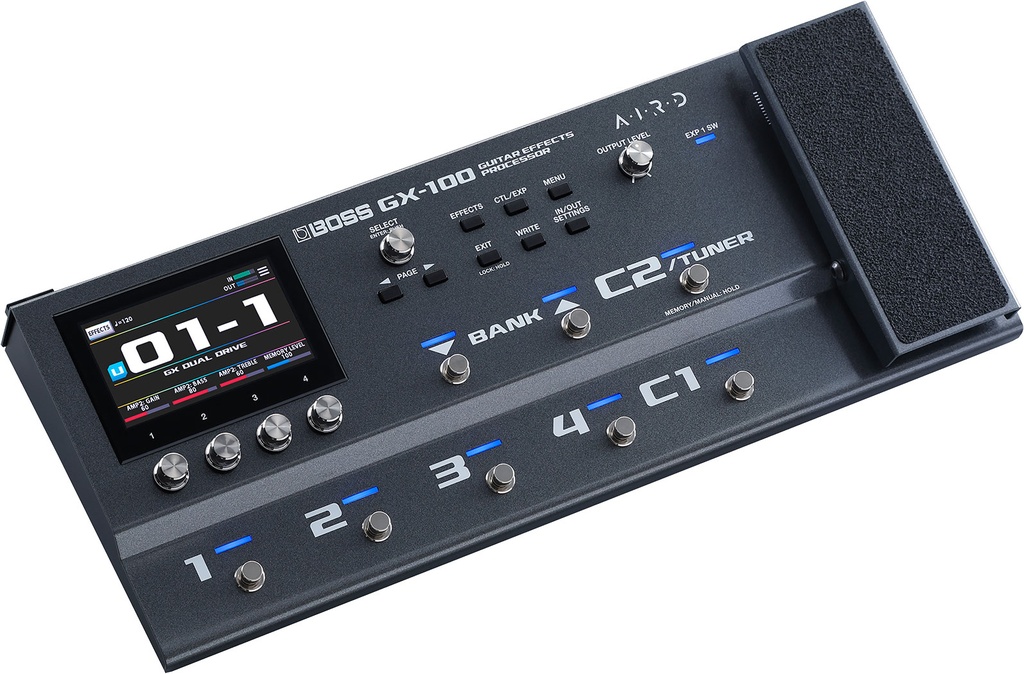

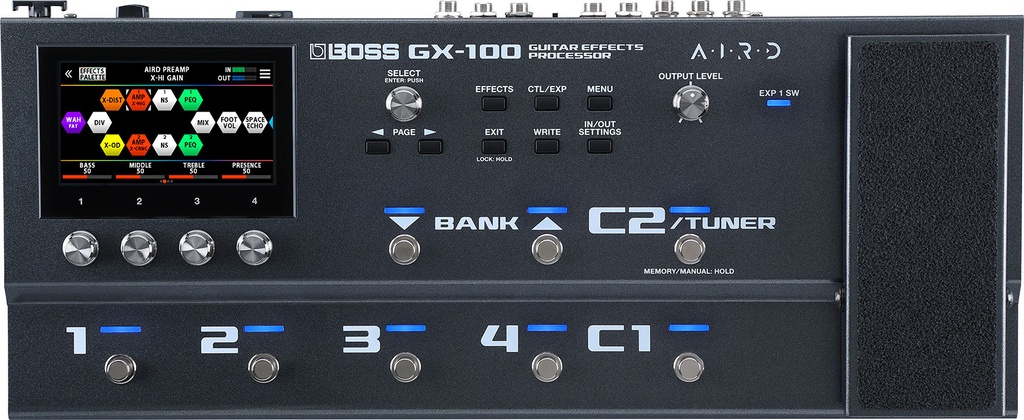

Boss GX-100 Multi Effects Processor
Fusing advanced BOSS tone technologies into a sleek, ultra-modern hardware design, the inspiring GX-100 delivers top-level performance everywhere you play. Explore 32 AIRD amplifiers and over 170 effects effects derived from the flagship GT-1000, and craft great sounds in seconds with the intuitive color touch display. Up to 15 simultaneous effect blocks provide unlimited tone possibilities, coupled with deep real-time command via onboard footswitches, an expression pedal, and external control support.
| Effects: 170 Types |
| AD Conversion: 24 bits + AF method, AF method (Adaptive Focus method) This is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters. |
| Brand: Boss |

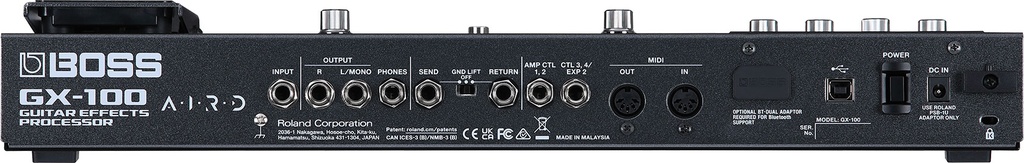

| Connectors: INPUT jack, OUTPUT (L/MONO, R) jacks, SEND jack, RETURN jack: 1/4-inch phone type, PHONES jack: Stereo 1/4-inch phone type, CTL3, 4/EXP2 jack, AMP CTL1, 2 jack: 1/4-inch TRS phone type, MIDI (IN, OUT) connectors, USB COMPUTER port: USB B type, Bluetooth ADAPTOR connector: Dedicated connector, DC IN jack |
| Controls: BANK DOWN switch, BANK UP switch, CTL1 switch, CTL2/TUNER switch, 1--4 switches, POWER switch, EXP1 switch, GND LIFT switch, EFFECTS button, CTL/EXP button, MENU button, EXIT button, WRITE button, IN/OUT SETTINGS button, PAGE button,1--4 knobs, SELECT knob, OUTPUT LEVEL knob, EXP1 pedal |
| Current Draw: 1.2 A |
| DA Conversion: 32 bits |
| Depth: 7-5/8 inches |
| Display: Color Graphic LCD (480 x 272 dots) Touch screen |
| Effect Patches / Memory: 200 (User) + 100 (Preset) |
| Effect Type: 32-bit floating point |
| Height: 2-7/8 inches |
| Included Accessories: AC adaptor (PSB-1U + AC Cord Set), Owner's manual, Leaflet "USING THE UNIT SAFELY" |
| Input Impedance: INPUT: 1 M ohm, RETURN: 1 M ohm |
| Max Height: 3-3/4 inches |
| Maximum Input Level: INPUT: +18 dBu, RETURN1: +8 dBu |
| Nominal Input Level: INPUT: -10 dBu, RETURN: -10 dBu |
| Nominal Output Level: OUTPUT (L/MONO, R): -10 dBu, PHONES: -10 dBu, SEND: -10 dBu |
| Options (sold separately): Footswitch: FS-5U, FS-5L, FS-6, FS-7, Expression Pedal: EV-30, FV-500L, FV-500H, Roland EV-5, Bluetooth(R) Audio MIDI Dual Adaptor: BT-DUAL, Carrying Case: CB-BM-M, Wireless MIDI Expression Pedal: EV-1-WL, Wireless Foot Switch: FS-1-WL (sold separately) |
| Output Impedance: OUTPUT (L/MONO, R): 1 k ohm, PHONES: 44 ohms, SEND: 1 k ohm |
| Phrase Loop / Looper: 38 sec. (MONO), 19 sec. (STEREO) |
| Power Supply: AC adaptor |
| Recommended Load Impedance: OUTPUT (L/MONO, R): 10 k ohms or greater, PHONES: 44 ohms or greater, SEND: 10 k ohms or greater |
| Sampling Rate: 48 kHz |
| Weight: 7 lbs 12 oz |
| Width: 18-1/8 inches |
