AER Dual Mix 2 Pocket Tool
SKU: DUAL-MIX-2The AER Dual Mix 2 packs a fully featured two-channel acoustic preamp and mixer into an anodized-aluminium pocket-tool housing barely larger than a smartphone, giving acoustic players a complete onboard front end for stage or studio. Each channel accepts microphone or instrument-level signals through a combo XLR/jack input with switchable 24-volt phantom power, gain and dedicated two-band EQ, then routes them through a shared four-preset digital effects engine offering two reverbs, a repeating delay and a chorus. Outputs include a balanced XLR DI with its own level control, a 1/4-inch line out, a stereo headphone amplifier and a footswitch jack for muting each channel — enough to use the Dual Mix 2 as an extension to an AER amp, a pre-stage mixer feeding directly into a mixing desk, or a quiet headphone rehearsal rig. Hand-built in Germany and powered by the supplied 24-volt adapter, it's the cleanest way to put two acoustic sources on stage without carrying a console.
| Effects | Digital effect processor with 4 presets (reverb short predelay, reverb long predelay, repeating delay, chorus) |

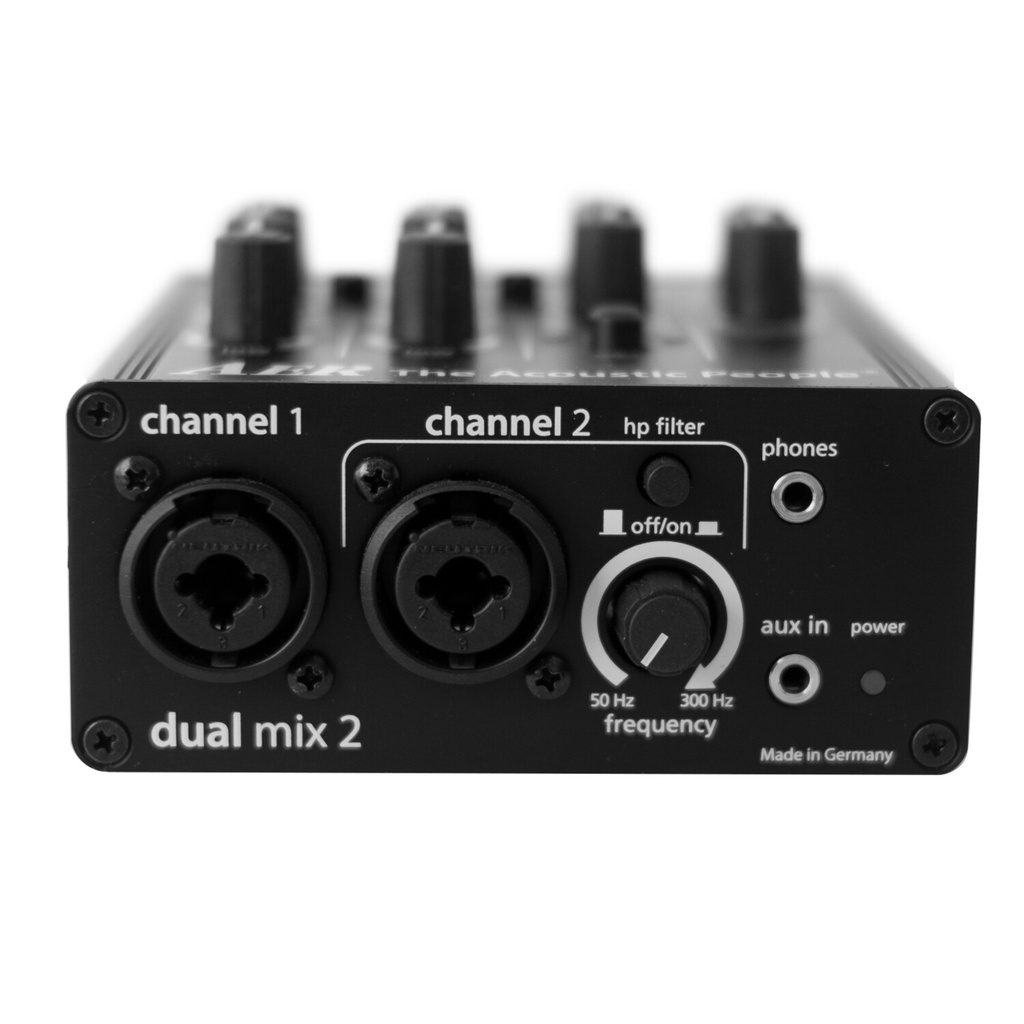

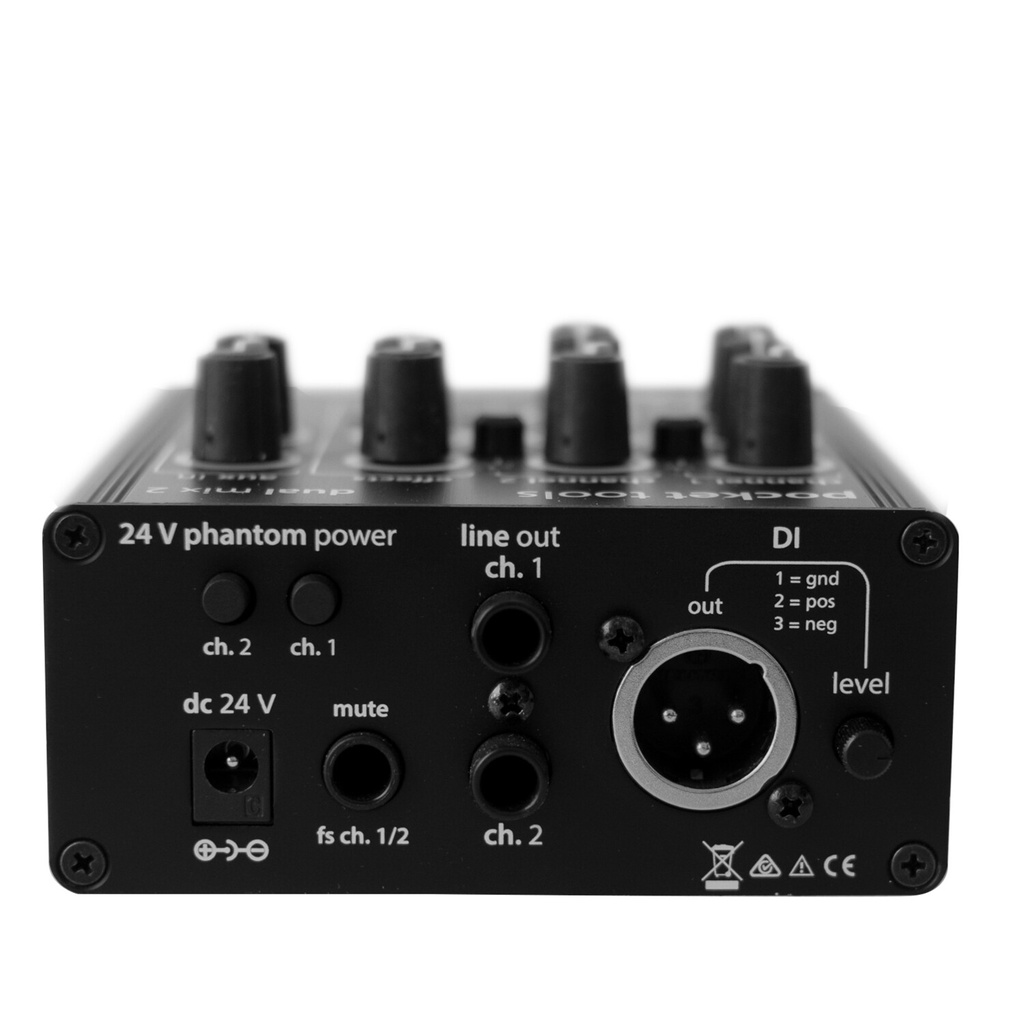

| Connectors | Ch 1 & Ch 2: combo XLR + 1/4" jack (line/mic, switchable 24V phantom per channel); stereo aux in (RCA + 3.5 mm); 1/4" line out; balanced XLR DI-out with level control; 1/4" stereo headphones; dual footswitch |

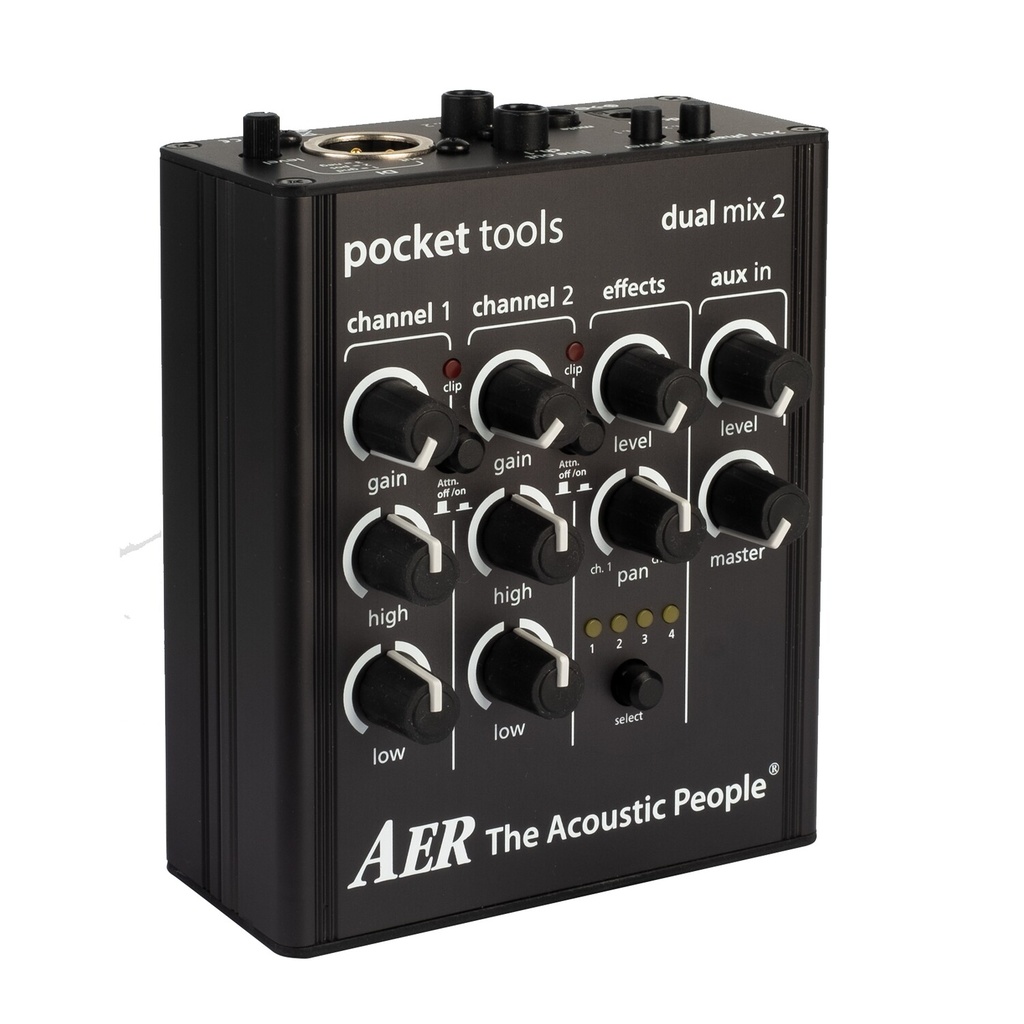

| Controls | Two channels, each with switchable mic/line input, gain, 2-band EQ (low ±12 dB @ 100 Hz, high ±13 dB @ 10 kHz), pan and channel mute via footswitch |
| Dimensions | 65 × 105 × 135 mm (2.56" × 4.13" × 5.31") |
| Finish | Anodized black aluminium housing |
| Power Supply | 24 V DC, 0.5 A (supplied mains adapter accepts 100–240 V~) |
| Series | Pocket Tools |
| Type | Preamp / Mixer |
| Weight | 480 g (1.06 lbs) |
