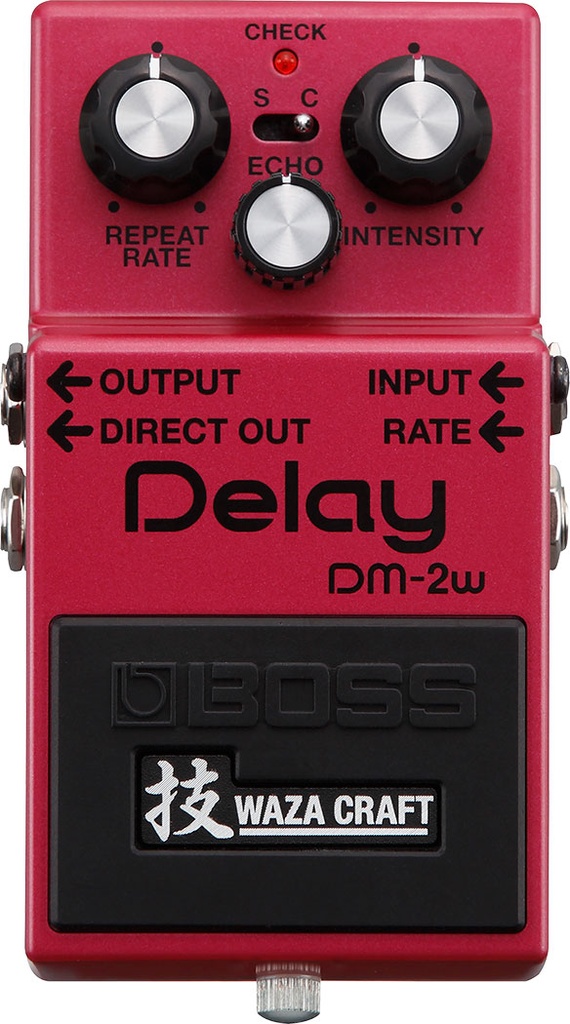

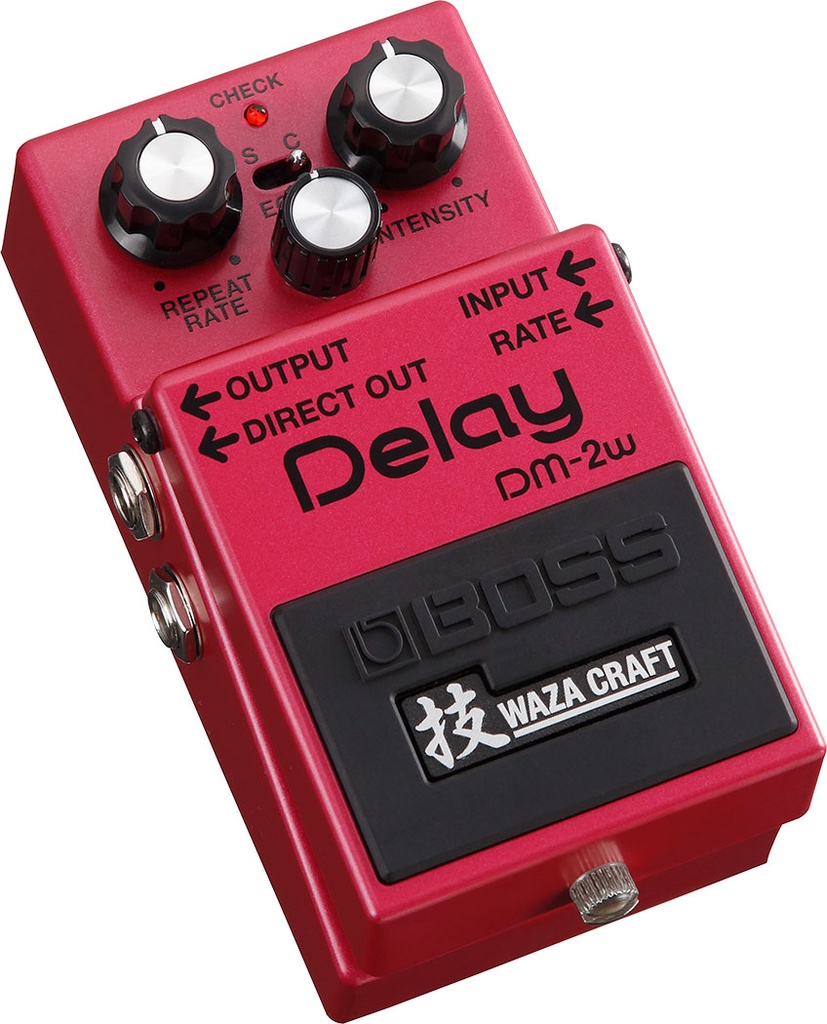

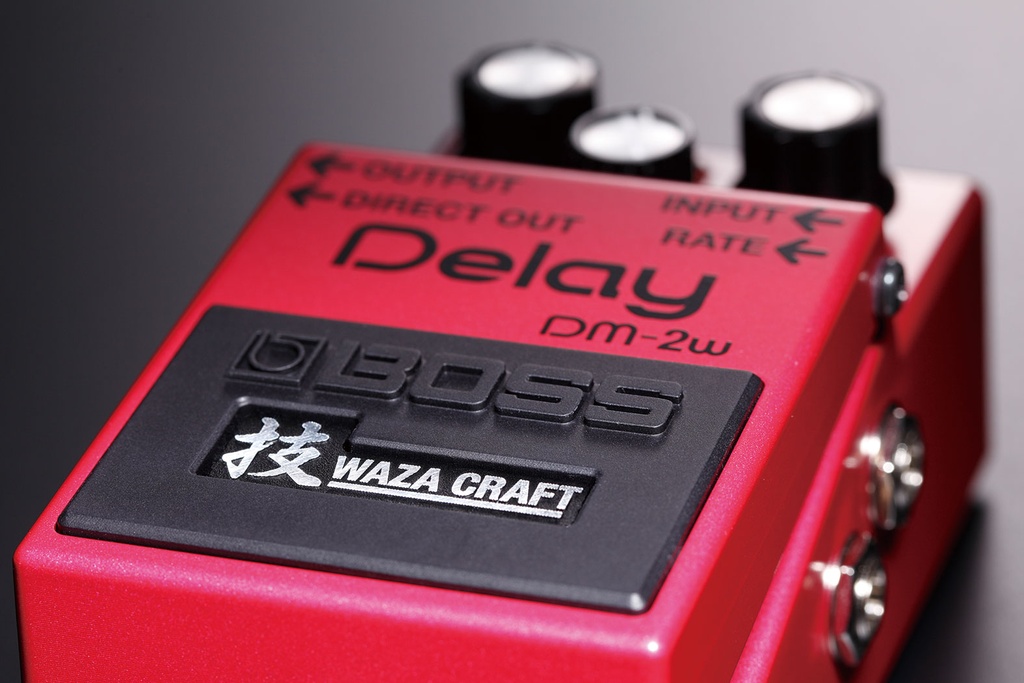

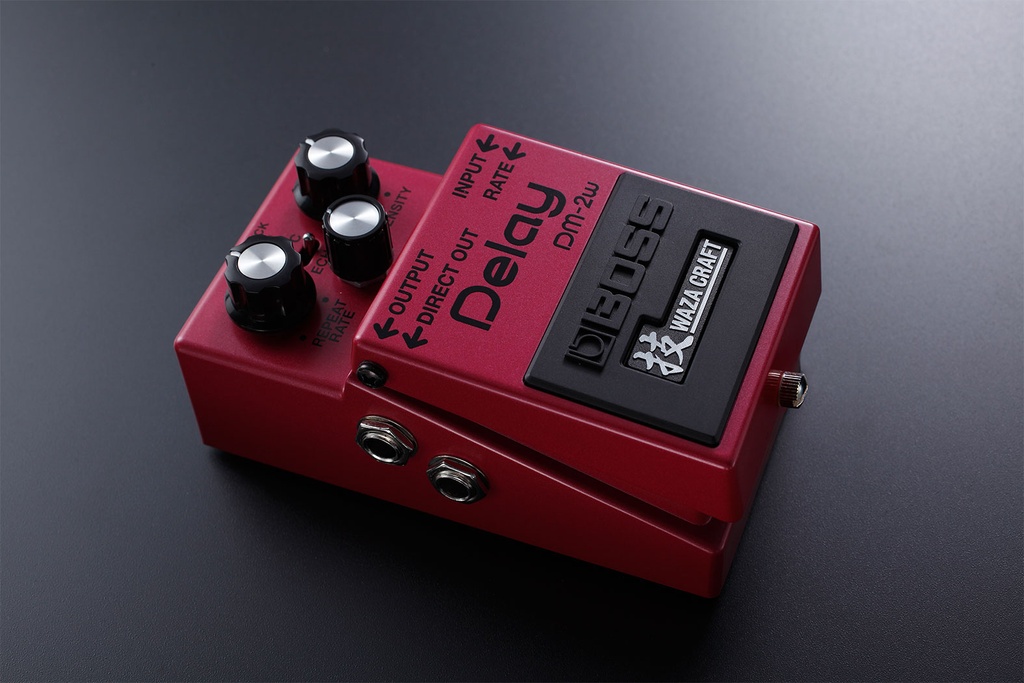

Boss WAZA Analog Delay Pedal
The BOSS DM-2W Waza Craft Delay is a premium reissue of the legendary DM-2 analog delay pedal, originally discontinued in 1984. Built in Japan with 100-percent analog circuitry, the DM-2W uses a classic BBD (bucket brigade device) delay line to deliver the warm, organic repeats that made the original a favorite among guitarists for decades.

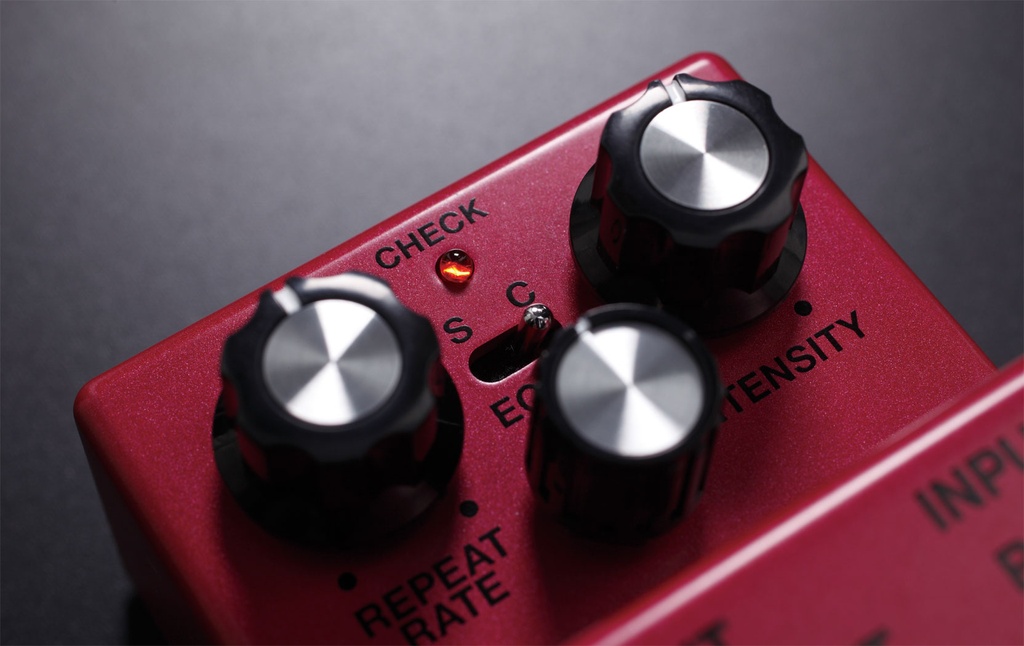

The DM-2W features two selectable sound modes via a toggle switch. Standard mode faithfully recreates the authentic vintage DM-2 tone with a 20–300ms delay range, while Custom mode opens up a cleaner, more expansive analog delay sound with an extended range of 40–800ms. Three intuitive knobs for Repeat Rate, Intensity, and Echo level provide hands-on control over your delay sound.
An expression pedal input allows real-time foot control of delay time for creative swells and pitch-shifting effects during performance. Dual output jacks let you route the delay and direct signals separately, opening up flexible routing options for stereo rigs or wet/dry setups. Part of the BOSS Waza Craft series, the DM-2W represents the pinnacle of analog delay tone refined with modern versatility.
| Battery Life: Alkaline: Approx. 15 hours, Carbon: Approx. 5 hours (These figures will vary depending on the actual conditions of use.) |
| Brand: Boss |
| Connectors: INPUT jack: 1/4-inch phone type, OUTPUT jack: 1/4-inch phone type, DIRECT OUT jack: 1/4-inch phone type, RATE jack: 1/4-inch TRS phone type, DC IN jack |
| Controls: Pedal switch, REPEAT RATE knob, INTENSITY knob, ECHO knob, Mode switch |
| Current Draw: 35 mA |
| Depth: 5-1/8 inches |
| Height: 2-3/8 inches |
| Included Accessories: Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information"), Alkaline battery (9 V, 6LR61) |
| Indicator: CHECK indicator (Serves also as battery check indicator) |
| Input Impedance: 1 M ohm |
| Nominal Input Level: -20 dBu |
| Nominal Output Level: -20 dBu |
| Options (sold separately): AC adaptor: PSA series, Expression pedal: Roland EV-5 (sold separately) |
| Output Impedance: 1 k ohm |

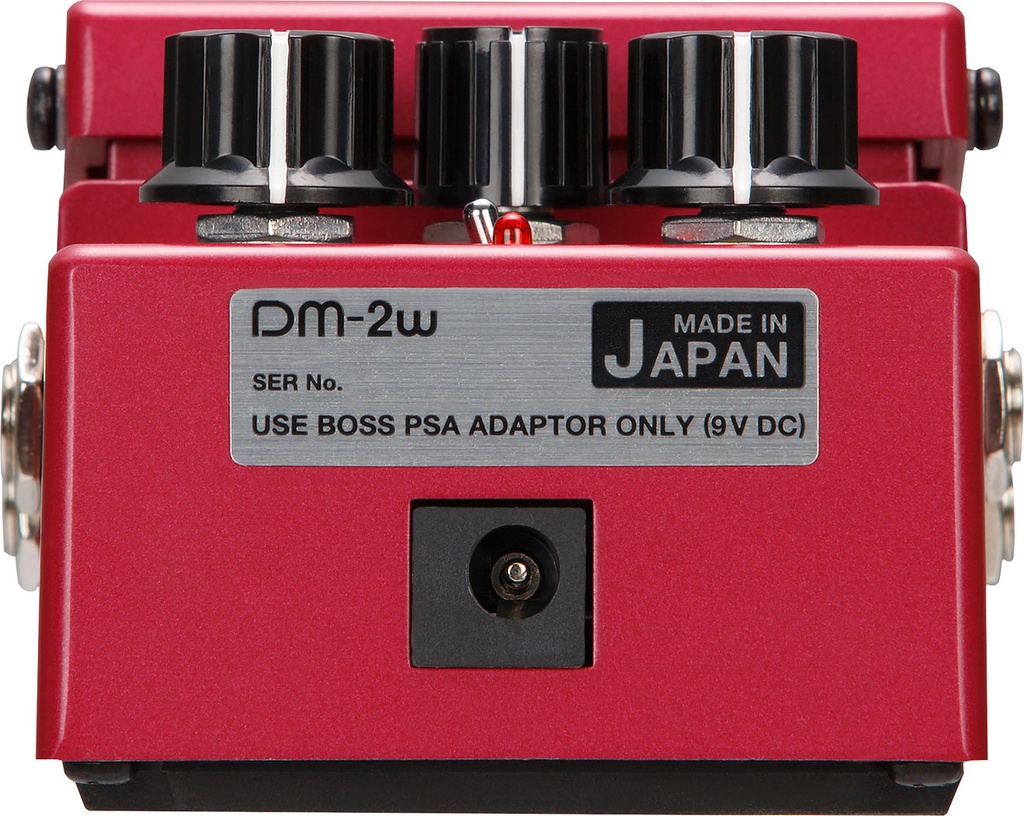

| Power Supply: Alkaline battery (9 V, 6LR61) or Carbon-zinc battery (9 V, 6F22), AC adaptor (PSA series: sold separately) |
| Recommended Load Impedance: 10 k ohms or greater |
| Weight: 460 g, 1 lb 1 oz |
| Width: 2-7/8 inches |
