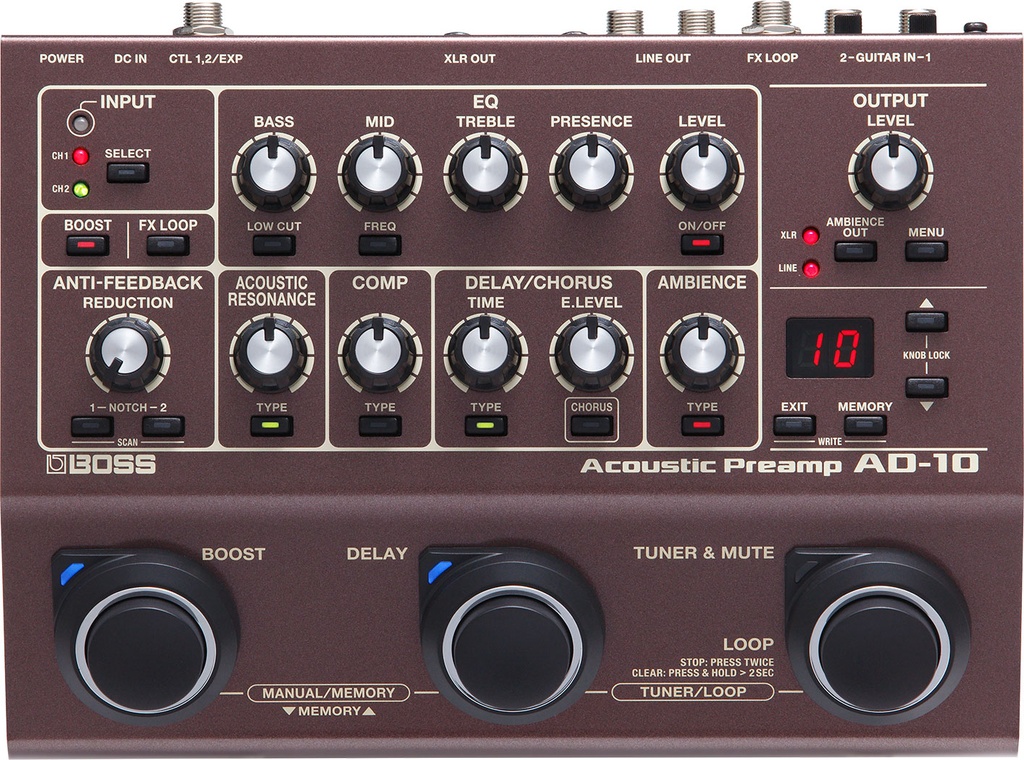

Boss AD-10 Acoustic Preamp
SKU: AD-10The BOSS AD-10 is a dual-channel acoustic preamp and DI pedal built for the demands of live performance and studio recording. At its core, the Acoustic Resonance processing restores the natural body and string resonance that undersea pickup systems typically lose, bringing your amplified acoustic tone closer to the sound of your unplugged instrument. A multi-band compressor with BOSS's MDP technology provides transparent dynamics control tailored specifically for acoustic guitar, smoothing your output without squashing the organic feel of your playing.
Two independent input channels let you switch between guitars or blend a magnetic and undersaddle pickup, each with dedicated four-band EQ featuring a parametric midrange and variable low-cut filter. Advanced anti-feedback tools, including a reduction function and dual notch filters, keep problematic frequencies in check on loud stages. Onboard ambience, chorus, and delay effects each offer three variations, giving you polished tones without extra pedals on your board.
Dual XLR outputs feed directly to a PA or recording console, while stereo quarter-inch outputs handle amp and monitor connections. A built-in USB audio interface provides a clean two-in, two-out recording path straight into your DAW. An 80-second phrase looper and built-in tuner round out the performance features, and ten onboard memory slots let you save and recall complete sound setups between songs or venues. The AD-10 runs on an AC adapter or six AA batteries, making it equally at home on a pedalboard or at an unplugged gig.
| Effects | ACOUSTIC RESONANCE (3Type), COMP (2Type), 4 BAND EQ, LOW CUT, BOOST, CHORUS (3Type), DELAY (3Type), REVERB (3Type), ANTI-FEEDBACK (REDUCTION, NOTCHx2) |
| Battery Life | Alkaline battery: Approx. 6 hours, *These figures will vary depending on the actual conditions of use. |

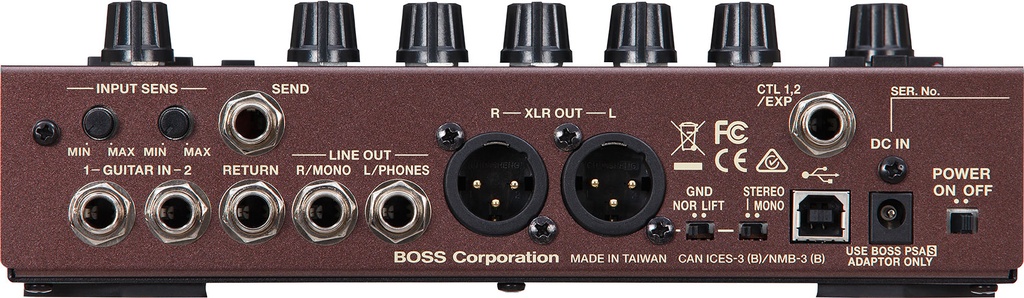

| Connectors | GUITAR IN 1,2 jack: 1/4-inch phone type, SEND: 1/4-inch phone type, RETURN: 1/4-inch phone type, XLR OUT L, R connectors: XLR type, LINE OUT L/PHONES, R/MONO jacks: 1/4-inch phone type, EXP/CTL1,2 jack: 1/4-inch TRS phone type, USB COMPUTER port: USB type B, DC IN jack |
| Current Draw | 300 mA |
| Depth | 6-3/8 inches |
| Display | 7 segments, 2 digits LED |
| Height | 2-9/16 inches |
| Included Accessories | Owner's manual, Leaflet "USING THE UNIT SAFELY", AC adaptor |
| Input Impedance | GUITAR IN 1,2: 10 M ohms, RETURN: 220 k ohms |
| Nominal Input Level | GUITAR IN 1,2: -10 dBu (Adjustable), RETURN: -10 dBu |
| Nominal Output Level | SEND: -10 dBu, LINE OUT L/PHONES, R/MONO: -10 dBu, XLR OUT L, R: -10 dBu |
| Options (sold separately) | Expression Pedal: EV-30, FV-500H/L, Roland EV-5, Footswitch: FS-5U, Dual Footswitch: FS-6, FS-7 (sold separately) |
| Output Impedance | SEND: 1 k ohm, LINE OUT L/PHONES, R/MONO: 44 ohm, XLR OUT L, R: 600 ohms |
| Phrase Loop / Looper | 80 sec |
| Power Supply | AC adaptor, Alkaline battery (AA, LR6) x 6 |
| Type | Effects Pedal |
| Weight | 2 lbs 14 oz (including batteries) |
| Width | 8-9/16 inches |
